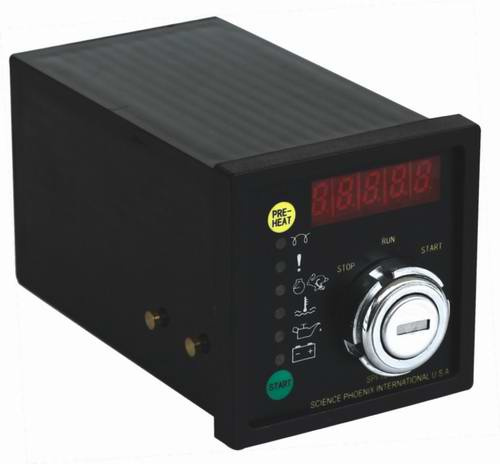

This model DACTS101k is a diesel control module. It manually start and stop the diesel via a key switch on the front panel, automatically shut down the diesel when the diesel is on fault conditions and indicate the failure by LED. The timing circuit display the total run hours of the diesel generator by LCD
1. Main function
*manually start and stop the generator
*pre-heat function
*integral tamper proof diesel generator hours counter
*shut down the generator automatically on fault condition & indicate the faults via LED
2. Specification
DC Supply:
9 to 33 V Continuous.
Cranking Dropouts:
Able to survive voltage dips during
Cranking. This is achieved without
The need for internal batteries.
Run Hours Counter Range:
0.0 - 9999.9 hours
Alternator Input Range:
0 - 250 V AC.
Alternator Input Frequency:
50 - 60 Hz at rated diesel speed.
Magnetic Input Range:
0.5 V to +/- 80 V
Magnetic Input Frequency:
2300Hz to 6000 Hz at rated diesel speed.
Speed meter Output:
0 - 5mA DC
Start Relay Output:
16A DC at supply voltage.
Run Relay Output:
16A DC at supply voltage.
Alarm Output:
1A DC at supply voltage.
Pre-heat Relay Output:
0.2A DC at supply voltage.
Overall Dimensions:
72 X 72 X 118.5mm (Excluding Key switch)
Fixing Dimensions:
Cut-out: 67X67mm
