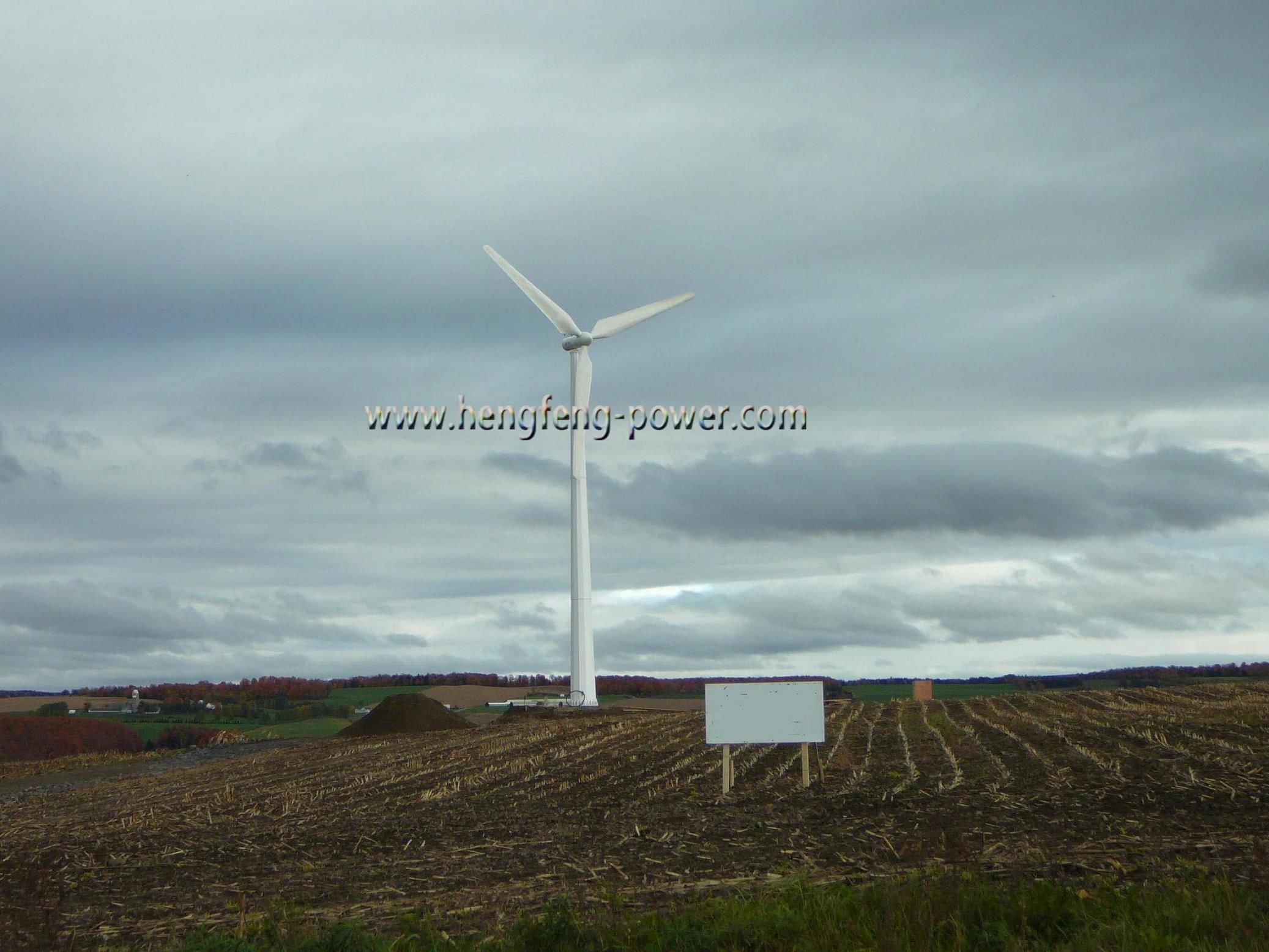

(1). Technical data of the 100KW Wind Turbine Generator
Rated power of wind turbine: 100kw,
Max power: 120kw,
Diameter of blades: 18.0m,
Rated rotor speed: 100(r/m),
Rated speed: 12(m/s),
Output voltage: 380V,
Start up wind speed: 4(m/s),
Work speed: 4-30(m/s),
Security wind speed: 50(m/s)
(2). Height of pole: 23 m,
Thickness: 12 mm,
Top diameter: 800mm,
Bottom diameter: 2m,
Flangediameter: 2.5m,
Sections of tower: 4,
Material: Q235, free stand tower
(3). Controller:
Rated wind input power: 100kw,
Rated battery voltage: 380vdc, control mode: PLC
Invertor:
Rated output capacity: 100kw,
Rated output voltage: 110/120/220/230/240/380/420 vac
|
Wind Turbine Generator Rated power |
100kw |
|
Max Power |
120kw |
|
Diameter of blades |
18.0M |
|
Rated rotor speed |
100(r/m) |
|
Rated speed |
12(m/s) |
|
Output voltage |
380V |
|
Start up wind speed |
4(m/s) |
|
Work speed |
4-30(m/s) |
|
Security wind speed |
50(m/s) |
|
Height of pole |
23m |
|
Thickness |
12mm |
|
Top Diameter |
2m |
|
Flange Diameter |
2.5m |
|
Sections of tower |
4 |
|
Material |
Q235 |
|
Tower type |
Free stand power |
Qingdao Hengfeng Wind Power Generator Co., Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004, Workshop covers more than 5000 square meters. It is about 1 hour by car to Qingdao Airport. And 30 minutes to Qingdao port. The traffic is very convenient.
Our company mainly produces 150 watts to 100 kilowatts of small and medium horizontal axis, vertical axis wind turbines, wind and solar power supply system, widely used in off-grid and on-grid power generation system. Produced in strict accordance with the ISO9001 international standard production system management, we have standard production line and automated packaging line, strict product testing system, advanced test equipment, to ensure provide customers the highest quality products and services; All products have achieved CE certification. Hengfeng has unrivalled experience and has built up a global reputation for their robust and reliable performance.
Our products has been export to more than 60 countries, for example, Europe, Middle East, Southeast Asia, Australia etc; Widely applied for island, military, maritime monitor, home use, commercial business and remote area etc, we have integrated design, production, sale and after-sale service. If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business, HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.
