Advantage:
1. Through the CE certification.
2. Rare earth permanent magnet materials
3. Professional magnetic circuit design
4. Constant voltage charging
5. Anti-corrosion
6. Low start-up wind speed
7. Maintenance free
8. Easy to install & operate
9. Suitable for family
10. Low vibration
11. High performance-price ratio

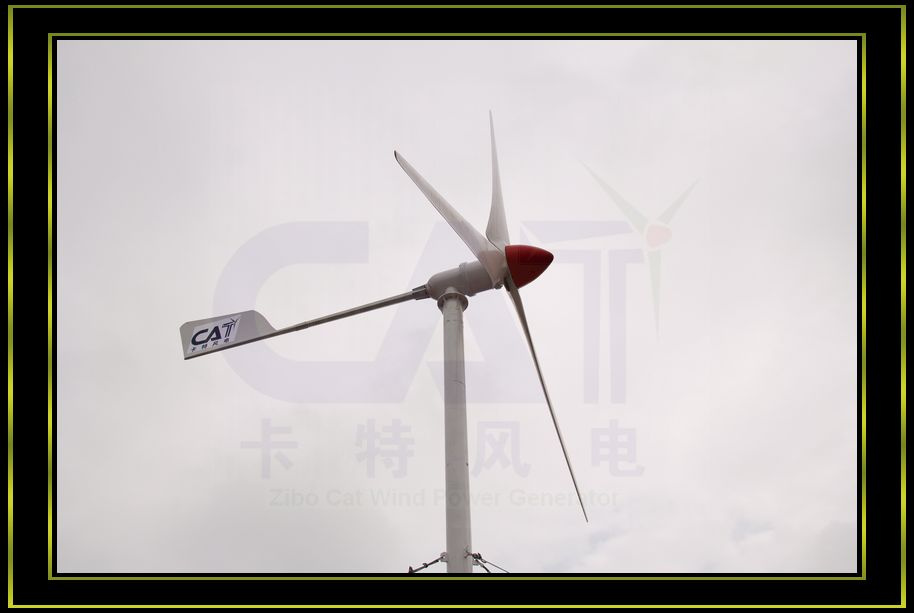

CAT-100KW Wind Generator Technical Parameter
Item parameter
Blades diameter(m): 18
Material and quantity: 3 PCS Strenghthened form in one piece made by hand
Rated power(w): 100000
Max power(w): 120000
Annual power generation(kwh): 150000-450000
Rated rotor speed(r/min): 160
Start-up wind speed(m/s): 3
Working wind speed(m/s): 4-25
Rated wind speed(m/s): 8
Security wind speed(m/s): 50
Work voltage(v) AC260
Batteries voltage(v)/capacity(AH): 360V200AH 240PCS(30PCS in series and 8 groups in parallel)
Adjust method: Automatically yaw+Electromagnetic damping adjusting speed
Brake method: Manual and Automatic brade\security protection system
Generator type: Three phase and permanent magnet generator
Generator class of insulation: F
Host weight:
Guyed Tower Height/Weight(kg):
Free Stand Tower Height/Wei:
Whole system package volume(m3):
Noise level(dB): <65
Zibo CAT Wind Generator Co., Ltd. is a National high-tech enterprise specialized in research, development, marketing and sales of renewable energy products especially for wind power. The main products including Small and Medium wind generators, inverter & controller for photovoltaic system &wind system, solar and wind hybrid generators, solar and wind hybrid street light, wind-diesel hybrid system, wind-solar-diesel hybrid system. We provide project consulting, system design, technical support, and other services to the whole project process.
Company Located in Zibo City, China, Near 1 hour from Jinan airport, 3 hours from Qingdao port. Covering an area of 4000 square meters. CE certified, the company has a complete series of strict testing and quality guarantee methods for all of the products. The products has exported to numerous oversea markets: North America, UK, Ireland, India, Italy, France, etc; There is also a wide range of domestic application of these product on oil field, farmland, industry park, military camp, fishing farm and port warehouse as well.
