100KW AC Intelligent Dummy Load Bank for Medium Frequncy Generator Set
1.Product Introduction
ZP200-100KW Load bank for Medium frenquency AC Generator
This machine is mainly used in electric power, telecommunications and other departments and
manufacturers of diesel generating sets, online and high-power UPS, inverter and performance
test of switching power supply, aging, etc.
The machine adopts late-model components, high power density, it hasn't red hot phenomenon.
Optimize the sectional power input so as to adapt to the needs of different power, the power setting completed by many open switch teams, using is very simple. The above characteristics make
the machine in safety, reliability, noise reduction, etc is superior to the other products.

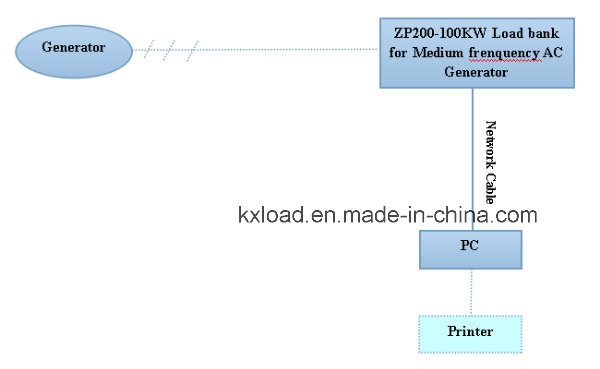

2. ZP200-100KW AC Load Bank System Chart
3.ZP200-100KW AC Load Bank Working Environment
Altitute:≤1000m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4. ZP200-100KW AC Load Bank Technical Specifications
Technical parameter |
ZP200-100kW |
Rated voltage /Frequency | AC 220V/400Hz |
Max load power | Resistor load: 100kW |
Load step | Resistive load: 12 steps, 0.1kW,0.2kW,0.2kW,0.5kW,1kW,2kW,2kW,5kW,10kW,10kW,20kW,50kW |
Power factor | 1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC220V/50Hz single phase |
Wire Connection | Load power supply input--Connector bar (star coupling) Control power supply input--5core socket |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Upward cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color | Grey(RAL7035) |
Dimension | About 500 mm*500mm*700mm(length*width*height) |
Weight | About 50kg |
Operating Environment Parameter |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤1000 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand |
Contactor | Schneider |
Fuse | Delixi |
SCM | Infineon |
Alloy resistor | Kaixiang |
Data management software | Kaixiang |

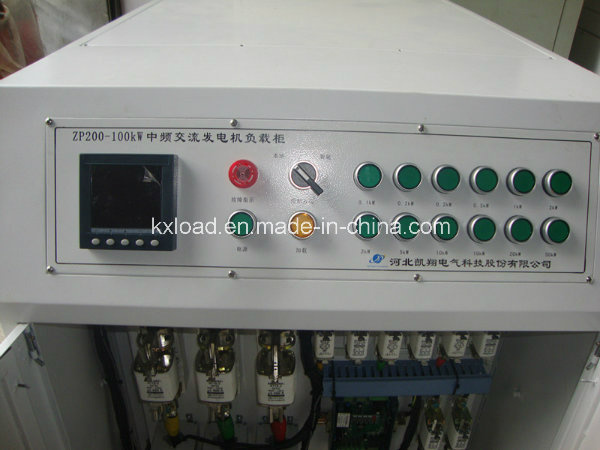

5.ZP200-100KW AC Load bank Overall Appearance
6.Why choosing us
- The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
- The most patent technology and scientific research awards gainer in China.
- Advanced detection method and strict inspection procedure build the qualified quality.
- Customized production meet the individual requirement.
- Prompt delivery & excellent after sales service.
- Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
- Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
- Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
