Shandong Chaiwei Power Equipment Co, . Ltd.
WE DEVOTE OURSELVES TO ELECTRIC POWER GENERATION.
1. Company Introduction
- Since 2008
- Factory area over 50000m2
- Starff over 260 employees
- Technicians over 100 people
- website www.cn-generator.com
2. Advantage
- Over 20-year gas engine technology
- Overhaul term: 15,000-20,000 hours
- Over 85% co-generation efficiency
- Economical and low-cost running
- Higher power output and stronger capability of load
- Better combustion and lower emission
- Continuous rating up to 80% of prime power rating
- Exceed 10-year genset repair and maintenance experience
- Larger displacement engine to keep much surplus for genset power output
3. Features
- ISO standard production
- Long genset lifetime
- Spare parts supplied lifetime
- Well-known brand generator-Siemens

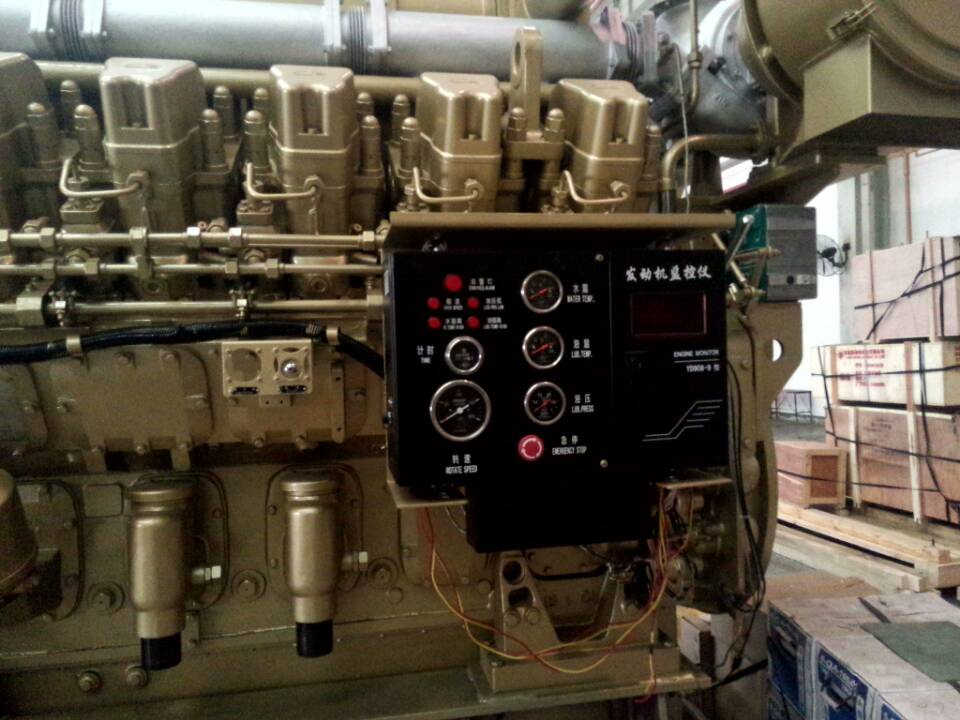

- Monitoring, control, alarm and protecting system on PLC controller
- Parallel operation with genset or city power grid for option
- Free of charge training for operation and maintenance
4. Technology parameters of diesel engine- Cylinder number and rank: 12 V-shaped, 60°
- Type: four-stroke, water-cooled, charge cooling, direct injection
- Cylinder bore: 190mm
- Cylinder stroke: 210mm
- Displacement: 71.45L
- Compression ratio: 14:1
- Change direction: anti-clockwise (face to terminal)
- Starting method: air motor, electric motor
- Lubricant method: pressure and splash lubricant
5. Visitors
6. Certificate
We have CE, ISO14001, ISO9001 and BV certificate to keep the good quality. Please contact us for more details.
7. Service
- Professional pre-sale service
- Exact quotation and correct specification
- Customized design for your project
- Completed service from consultation to after-sale service
- On-time delivery
- Rich experienced engineer could go aboard installation, commissioning and training
- Spare parts supplied lifetime
- Technology consultation supplied lifetime
9. Accessories
1. Application scope of the Accessories, such as 12v190, 8v190, 6190, 6135 and other engine types.
2. All parts were from original factories or professional factories, complete in specification, keep good quality.
Sincerely welcome to visit our factory and build future cooperation relationship.
Genset Model | Rated Power (kw) | Engine Brand | Engine Type | Enging Power (kw) | Cynlinder No. | Bore*Stroke (mm*mm) | Displacement (L) | Oil Capacity (L) | Oil consumption (g/kwh) | Size L*W*H(mm) | Net Weight (kg) |
LHJ-500GF | 500 | Jichai | G6190ZLC | 540 | 6 | 190*210 | 48.6 | 150 | 208 | 5320*1820*2700 | 8500 |
LHJ-550GF | 550 | Jichai | Z8190D2 | 588 | 8 | 190*210 | 48.6 | 150 | 208 | 5320*1820*2700 | 9500 |
LHJ-630GF | 630 | Jichai | 8190ZLC | 720 | 8 | 190*210 | 48.6 | 160 | 205 | 6150*1820*2700 | 10200 |
LHJ-800GF | 800 | Jichai | Z12V190B | 882 | 12 | 190*210 | 71.45 | 200 | 205 | 5880*1820*2820 | 11000 |
LHJ-900GF | 900 | Jichai | Z12V190BD7 | 992 | 12 | 190*210 | 71.45 | 200 | 205 | 5880*1820*2820 | 12000 |
LHJ-900GF | 900 | Jichai | G12V190ZL1 | 1000 | 12 | 190*210 | 71.45 | 240 | 205 | 5880*1820*2820 | 12500 |
LHJ-1000GF | 1000 | Jichai | G12V190ZL1 | 1000 | 12 | 190*210 | 71.45 | 240 | 205 | 5880*1820*2820 | 12500 |
LHJ-1200GF | 1200 | Jichai | A12V190ZLD | 1320 | 12 | 190*215 | 73.15 | 240 | 205 | 5880*1920*2950 | 14800 |
LHJ-1500GF | 1500 | Jichai | H12V190ZLD | 1740 | 12 | 190*215 | 73.15 | 280 | 205 | 6520*2570*3150 | 18000 |
LHJ-2000GF | 2000 | Jichai | H16V190ZL | 2400 | 16 | 190*215 | 73.15 | 280 | 205 | 8200*3500*4100 | 19000 |
FAQ
1) How to choose the right model? It depends on the hours the genset works per day
2) How long is the warranty? One year
3) Do you provide installation? Commissoning? And training? Yes
4) Your engineer can go abroad? Yes
5) Can you supply the spare parts? Yes
Detailed Contact Information
Alisa Ching
Phone:+86 18560016265
Website: www.cn-generator.com
Shandong Chaiwei Power Equipment Co., Ltd is a comprehensive high-tech enterprises in China with more than 15 years experiences, focusing on new type of environmental protection generators' development production and sale. We have our own brand "CHARGEWE" generator set, including diesel generator set, biogas generator set, nature gas generator set, biomass generator set, coal gas generator set etc. From 20kw to 1000kw with CE & ISO9001: 2008 certificate, Besides we also offer the diesel engine and spare parts for gas/diesel generator set. Our products have been exported to Middle East, South America, Southeast Asia, Russia, Eastern Europe and have got a high reputation on the domestic and overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. So the OEM and ODM are available. We have completed quality inspection system to make sure each product that customer get is perfect, and the professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
