Natural gas generator
Closed water cooling
100kW/125kVA
ATS, soundproof as optional accessary
CE certificate

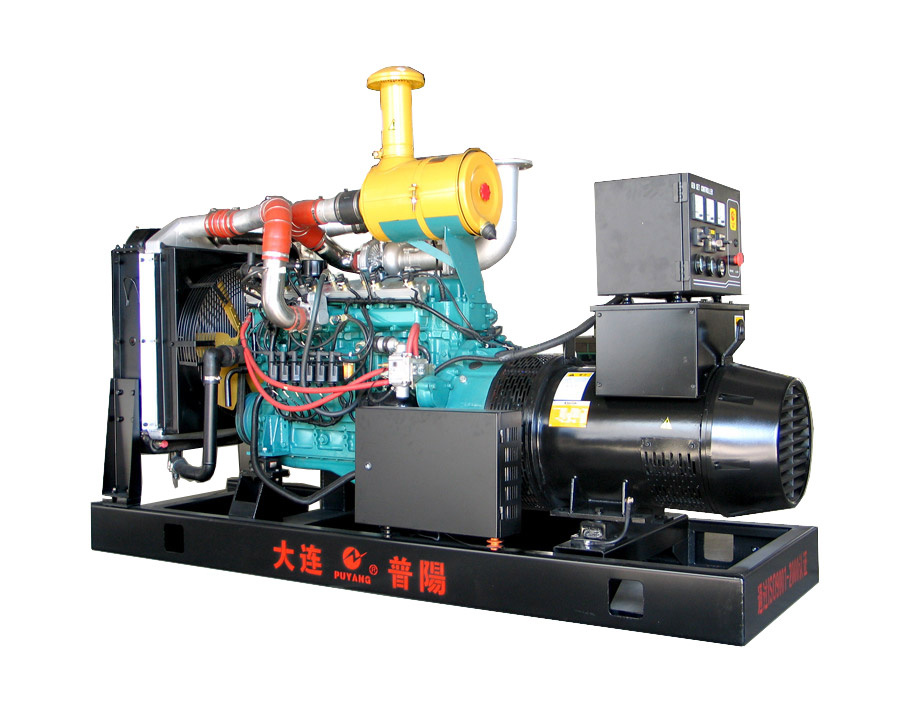

100kW/125kVA Natural Gas Generator with CE certificate
Specification of Natural gas generator (100kw):
Natural gas generator sets are made up of famous gas engines (produced by Ominitek gas Engine Co. ) which is of superior performance and can be used as emergency power supply and commonly used power, supplied in fields of telecommunications, highways, skyscrapers, hospitals, airports, armies and factories.
Natural gas generator set(400/230V, 50Hz) technical parameter
|
Gas Genset |
Genset model |
PFO125-T |
|
Rated power(kw/kva) |
100/125 |
|
Gas Engine |
Engine model |
OM6NG5-110G |
|
Rated power(kw/kva) |
135/169 |
|
BorexStroke(mm) |
102*120 |
|
Rated speed (rpm) |
1500 |
|
Starting system |
Electric starting(DC24V ) |
|
Governing method |
Electrical |
|
Cooling system |
Closed water-cooled |
|
No of cylinder |
6 cylinders in-line |
|
Inspiration method |
Turbo-charged |
|
Gas consumption(m3/kw.h) |
0.32 |
|
AC Alternator |
Alternator model |
Engga |
|
Excitation mode |
brushless |
|
Insulation class |
H |
|
Protection class |
IP21 |
|
Factor |
0.8(Lagging |
|
Phase/Wires |
3 phase 4 wire |
|
Gas Genset |
Net weight(Kg) |
1140 |
|
Overall dimention(LxWxH) (mm) |
2350x830x1355 |
After over a decade´ S developing, Dalian Puyang Generating Set Co., Ltd. has become the leading generating set manufacture in Northern China. We have the largest scale of production and full product specifications and models. Puyang diesel generating set has past the test of China National Internal Combustion Set Quality Test Centre, we have also got the telecommunication facilities network import license of National Telecommunication Department and marine product certification of PRC, and we have been authorized by ISO9001 and WSSN2000 as well.
We have got long-term cooperation partners such as Cummins, Man, Volvo, Doosan, Mitsubishi, Shangchai, Weichai, Laidaong, Marathon, Engga, etc. With self-contained producing conditions, advanced testing equipments and abundant technologies, we can provide diesel generators from 8kw to 1800kw.
At present, we can supply standard diesel generator, automatic starting diesel generator, full automatic telemonitoring diesel generator, removable (mobile) power station, silent / soundproof diesel generator, weatherproof diesel generator, refrigerator car and marine product generating sets, etc. We have the only one full--function testing centre in Northern China, and we strictly follow the standard of GB/T2820 and ISO8528"AC generator set" to examine all functions of generating sets to guarantee 100% pass rate of our products.
