soundproof generator enclosure
Engine of genset 100kva:
Model: 6BT5.9-G2
Origin: Manufactured by Dongfeng Engine Co., Ltd
Start Model: DC24V electric start
Steady Speed Droop:≤1%
6 cylinders ,in-line,4 stroke
AC generator head:
Brand: Leadtech
model: LTG274C1
Matertials:100%copper
Freqency&Speed:50HZ,1500RPM
Insulation&Protection:H, IP22
Rated Voltage: 230/400V
Frequency regulation: ≤±0.5 %(stable)
Voltage regulator: standard AVR
brushless,self-excited,AC synchronous, single bearing
Auto start control system:
Brand:Smartgen 6110 or Smartgen 6120(with ATS) optional. Customers can also select other brand such as HGM6310, HGM6320, DSE3110, DSE5110, DSE7110 and DSE7210 etc.
(1)Widely used in all types of generator automatic control system for compact structure,advanced circuits,simple connections and high reliability.
(2)LCD display,automatic control, Chinese and English display interface. Can be adjust from front panel, or use the PC through programming interface, also can use a PC via RSR485 interface and monitoring.
(3) Function:high water temperature, low oil pressure, low speed and over load protection,etc.
ATS(Automatic Transfer switch)
It's widely used in hospital,airport,hotel,school and other emergency power supply equipments.
Once the main power failure, the control panel will received the signal to start the genset within 5 seconds, ATS will switch to the load wires to connect genset power supply,and the whole process takes less than 15 seconds. After the main power recovered 30 seconds, ATS automatically switch the load wires to connect main power supply,the genset will stop after running 180 seconds
Vibration Insulator:
Rubber paad mounting isolate base from engine/generator assembly Rubber pad mountings isolate base from engine/generator assembly make it stable:
Silencer
Intermal high-efficent prevent silencer. which can reduce the niise in outlet smoking vent

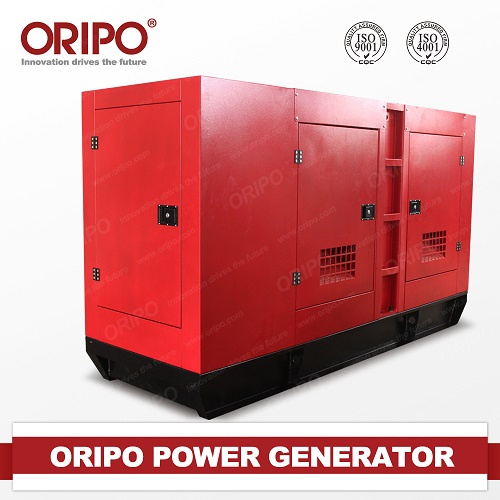

Super Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Generator set specifications |
Governor Class | ISO8528 G3 |
Potential Drop | 1% |
Steady Voltage Regulation | 1% |
Frequency Drop | Synchronous (0%) |
Steady-state Frequency | 0.25% |
R.R.I.Suppression | BS EN 61000-6-4 / BS EN 61000-6-2 |
Fuel Consumption Rate ,g/kw.h(L/hr | 215 (22) |
Starting Battery Capacity ,A/hr | 80*2 |
Total Coolant Capacity ,L | 27 |
Engine Data |
Model | 6BT5.9-G2 |
Type | In-line 6 Cylinder,4 Cycle |
Displacement ,L | 5.9 |
Compression Ration | 17.5:1 |
Aspiration | Turbo |
Fuel System | A/AD type Fuel Pump,EFC Electronic Governor |
Bore*Stroke(mm) | 102*120 |
Rated Speed ,rpm | 1500 |
Governor Type | Electronic |
Starting Voltage | 24V ,Negative ground |
Battery Charging System | 24V 35A |
Lubricant Capacity ,L | 16.4 |
Coolant Capacity, L | 27 |
Alternator Data |
Protection Class | IP21 |
Insulation Class | Class H |
Temperature Rise in Standard | 125 °C(When Ambient Temp.is 40 °C) |
Excitation Type | Brushless & Self-excited |
Waveform Distortion | No load<1.5% Non-Distorting balanced linear load<5% |
Telephone Interference(TIF) | <50 |
Telephone Interference(THF ) | <2% |
Guarantee and after sale service;
Warranty:One Year or 1000 running hours, whichever comes first. with more than one hundred maintenance shops all over worldwide, it is very easy to find the spare parts and get technology support.
24hours technical support by E-mail
testing :
All generator sets are gone through rigorous testing before being released to the market place, include 50%load,75% load,100% load,110% load and all protection fuctions (over speed, high water temperature, low oil pressure, battery change fail, emergency stop)
