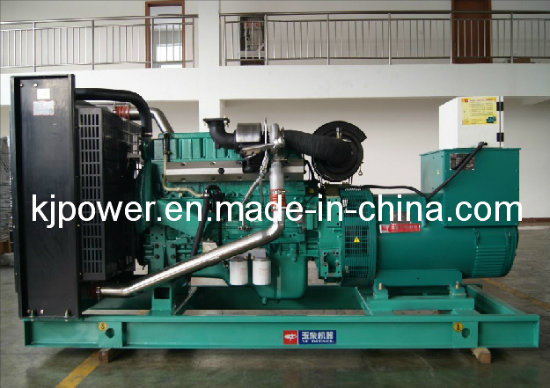

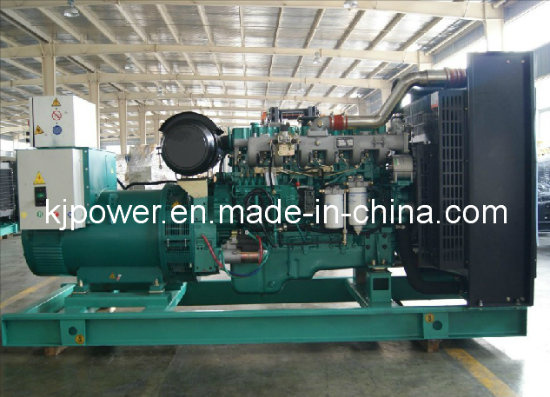

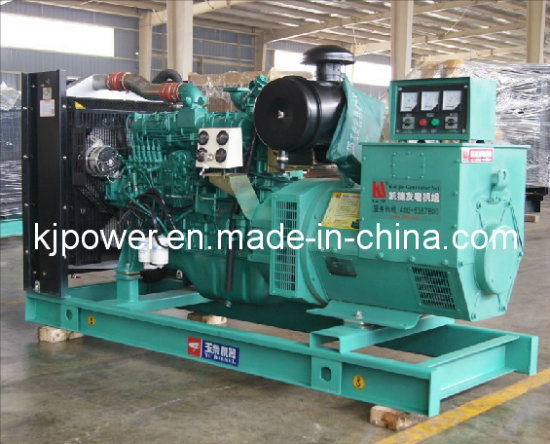

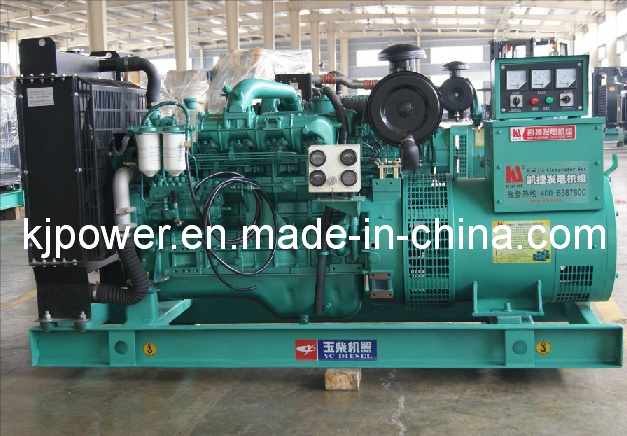

100kVA Soundproof Electric Generator Powered by Yuchai Diesel Engine

100kVA Soundproof Electric Generator Powered by Yuchai Diesel Engine
Price: US $ 6500-7500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
50Hz Yuchai series electrical generator

1) Yuchai OEM Top Quality
2) ATS, AMF, Synchronization Optional
3) ISO approved supplier
4) Competitive Price with High Quality
5) Coupled to Stanford/Leroy Somer/Kaijie alternator

Supply Scope of Kaijie Yuchai electrical generator:
1. Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Kaijie sales.
2. Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga, Kaijie and Marathon for Option)
3. With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4. With Chint Breaker
5. Complete Operation/Maintenance Manuals for Genset/Engine/Alternator, Genset testing report
6. Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
Genset
Model
Prime
 Power
Standby
Power
Engine ModelCylinderBore×StrokeAspirationDisp.AlternatorDimensionWeight
KVA/KWKVA/KWmmLKaiJieStamfordL×W×H(mm)kg
KJ-Y5550/4055/44YC4D60-D216L108×115Natural 4.214KTFW40      UCI224D1800×600×1300900
KJ-Y6563/5069/55YC4D85Z-D206L108×115Turbocharged4.214K-TFW50UCI224E1850×650×1350950
KJ-Y8875/6083/66YC6B100-D206L108×125Natural 6.871K-TFW60UCI224G2000×700×13501200
KJ-Y110100/80110/88YC6B135Z-D206L108×125Turbocharged6.871K-TFW80UCI274C2300×700×14501300
KJ-Y140125/100138/110YC6B155L-D216L108×125Turbocharged&Intercooled6.871K-TFW100UCI274D2400×750×14501500
KJ-Y160150/120165/132YC6B180L-D206L108×125Turbocharged&Intercooled6.871K-TFW120UCI274E2400×850×15001600
KJ-Y200175/140200/160YC6A230L-D206L108×132Turbocharged&Intercooled7.252K-TFW150UCI274G2400×900×15001850
KJ-Y220188/150206/165YC6G245L-D206L112×132Turbocharged&Intercooled7.8K-TFW160UCI274J2600×900×15002000
KJ-Y250200/160225/180YC6M285L-D206L120×145Turbocharged&Intercooled9.839K-TFW200UCI274K2900×1000×17002250
KJ-Y313250/200275/220YC6M350L-D206L120×145Turbocharged&Intercooled9.839K-TFW250HCI444D2900×1000×17002350
KJ-Y350313/250350/280YC6MK390L-D206L123×145Turbocharged&Intercooled10.338K-TFW280HCI444E3000×1000×17502800
KJ-Y388350/280375/300YC6MK410L-D206L123×145Turbocharged&Intercooled10.338K-TFW300HCI444FS3000×1100×17503000
KJ-Y413375/300413/330YC6MK470L-D206L123×145Turbocharged&Intercooled10.34K-TFW330HCI444F3000×1100×17503000
KJ-Y450      400/320438/350YC6K500L-D206L129×155Turbocharged&Intercooled12.155K-TFW350HCI444F3500×1100×17503200
KJ-Y500450/360500/400YC6T600L-D206L145×165Turbocharged&Intercooled16.35K-TFW400HCI544C3500×1250×18003500
KJ-Y563500/400550/440YC6T660L-D206L145×165Turbocharged&Intercooled16.35K-TFW450HCI544D3500×1250×18003800
KJ-Y750700/560750/600YC6C900L-D206L200×210Turbocharged&Intercooled39.58K-TFW600LVI634B3800×1300×18004500
KJ-Y875750/600825/660YC6C1020L-D206L200×210Turbocharged&Intercooled39.58K-TFW650LVI634C3800×1300×18004550





Prod Model: KJ-Y110
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 50Hz, 60Hz for Option
Rated Voltage: 400/230V, Various Voltage Available
Controller: Smartgen 6110 (Deepsea for Option)
Function Option: ATS, AMS, Synchronization, High Voltage, etc
Generator Type: Open Type/Silent Type /Container Type/Trailer Type
Quality Standard: ISO9001
Alternator: Kaijie (Leroy Somer, Stamford for Option)
Export Market: Globally
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Anhui Kaijie PowerTechnology Co., Ltd. is a professional manufacturer, specializing in production, design, sales, installation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, Volvo, MTU, DOOSAN, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON, KAIJIE series AC alternators. Kaijie series generator set power range is from 10kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice. Comply strictly with ISO9001: 2008 Quality System, We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system. Win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service! Customers' satisfication, our traget!
