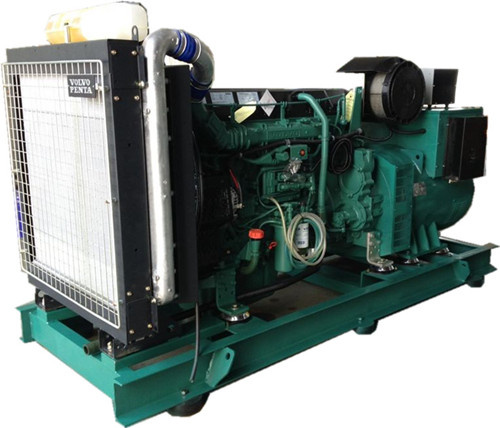

volvo 500kva diesel generator set
Volvo diesel generator set with Sweden original engine Stamford generator of form a complete set, use the deep sea controller have been assembled. Its characteristic is: good quality, the use of stable performance, low fuel consumption, low noise, the global warranty.
The main parameters of the engine |
Brand | VOLVO |
Model | TAD1642GE |
Spare power | 440Kw/550kva |
Type | four strokes, waste gas turbine boost,direct spurting type |
Cooling way | water cooling |
With type | Inline type |
Bore*Trip | 144mm*165mm |
Cylinder | 6 cylinders |
Displacement | 16.12L |
Lubricating Capacity | 48L |
Speed adjustment way | electronic speed |
Rotating speed | 1500r/min |
Starting way | starting with electricity |
The main parameters of the generator |
Brand | Stamford |
Model | HCI 544E |
Type | brushless (AVR automatic voltage regulating) |
The connecting way of the phase | three phases four lines |
Insulation degree | H degree |
TIF | <50 |
THF | <2% |
The factor of rated power | ≤±1% |
Grading Protection | IP23 |
Unit parameters |
Power | 400kw/500KVA |
Rated voltage | 400V/230V |
Rated current | 721A |
Rated frequency | 50 HZ |
The factor of rated power | 0.8 |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The regulating rate of steady voltage | ≤±1% |
The time of steady voltage | ≤3sec |
The waving rate of voltage | ≤0.5% |
Voltage waveform distortion degree | ≤8% |
The regulating rate of steady frequency | ≤5% |
The regulating rate of instantaneous frequency | ≤-10%/+12% |
The time of steady frequency | 3sec |
The waving rate of frequency | ≤1.5% |
The waste of fuel with full load | 198g/kw.h |
Size(mm) | 3500*1160*1960 |
Weight(kg) | 3350 |
Taizhou Fengfa Power Equipment Co., Ltd. Was founded in 2008, integrating the R&D and sale. Our company covers an area of above 2000 square meters. With our abundant experience and industrious and hardworking staff members, we can meet various requirements from different types of customers. Our production capacity amounts to 1, 000 sets per year. We are mainly engaged in diesel generator, Cummins generator, Volvo generator and our products sell well in Southwest Asia, the Middle East and Africa. We conduct strict quality inspections over each batch / product. We will try our best to serve you and hope to become one of your friends and business partners.
