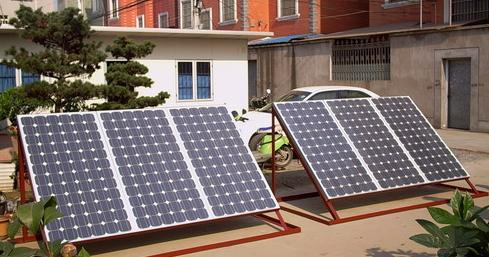

Home Generator Products 1000WP Solar Generation System (VSS-03)

1000WP Solar Generation System (VSS-03)

1000WP Solar Generation System (VSS-03)
Price: Negotiable
Min Order: 1
Equipment disposition:
1. Solar cell module:
1000W/72V
2. Exempt-maintain accumulator:
250Ah/48V
3. Controller: 48V. 20A
Function: Over charge and release protection, short-circuits protection, over-flow protection, solar panel meets the counter protection, battery meets the counter protection, charge temperature compensation, against thunder protection.
4. Inverter:
Settled voltage: 48V, outpt power: 1500W, output voltage: AC220V, output frequency: 50Hz+/-0.1Hz, Inversion ratio 80%~92%

We count on the daily 5 hour average effective sunshine time computation in this system. (It is pretty good for average effective sunshine time to be 5 hours, which can be reached in Northwest of China and some African country); This system may guarantee two continual cloudy rainy days, and the smallest cloudy and rain days intervals is 30 days.

Specification:
Solar Panel:
* We adopt mono-crystalline silicon or poly-silicon; Transformation efficiency up to more than 15%; Follow BOBS. BOS IEC 61212: 2005 related national standard, such as PV-GAP, IEC 62257-7-1
Generating performance:
*Tested our solar cell board in standard luminous intensity or under the mock standard luminous intensity condition, ie, testing environment for the solar radiation is 1000w/m2 and the air quality is 1.5
Mechanical performance:
Adopt 3.5mm ultra-thin transparency steeled glass with disposable lamination seal, and fixed with 5mm aluminum alloy material all around the frame.

*Solar cell board with anti-wind and rain function, and the protection rank is IP56.

Environmental performance:
*Can work under 0 to 45 centigrade as settled operating parameter
*Can operate under environmental temperature -10 to 70 well, and will not harm to cell panel to worse the performance.

Battery:
*The accumulator cell uses the deep circulation to exempt the maintenance lead-acid battery, which follow national standard like BOS IEC 61056-1
* Under the 20 centigrade, low self-electric discharge and 90% charges is allowed within a month.
*We guaranteed that electric quantity released still achieved or surpasses the initial discharge capacity 80% after 300 completely circulation.
* Packing is the non-corrosiveness and protection range should be IP64
Controller and Inverter Union:
*Inverter adopt pure wave or revision sine wave according to load require.
*controller and inverter together have over-low protection
*Security protection includes counter extremely, short-circuits, over-flow and adverse current protection.
* With temperature compensation function
* With against thunder protection device
*With LCD screen to display system's running state
* Correspondence permission implements of the long-distance monitor according to the need.
Prod Model: VSS-03
Shenzhen V-SunTech Co., Ltd is a high-tech enterprise, professional in R&D, manufacture and sales of solar photovoltaic application products as well as undertaking various solar photovoltaic projects. The main products include various kinds of photovoltaic application products like solar chargers, solar mobile power boxes, solar traffic lights, solar power generation systems, solar lamination and solar landscape lights and so on. Moreover, Our products have passed the FCC, RoHS and CE certification.

Our company is strong in R & D and marketing. We are conatsantly adding to our inventory to insure that our customers are always ahead.

We offer a competitive price, excellent quality, prompt delivery and great after sales services.

For sucess and profit, contact us right away. We are always by your side.
