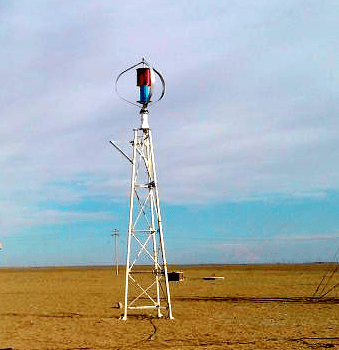

Home Generator Products 1000W Low Wind Start Maglev Wind Turbine Generator

1000W Low Wind Start Maglev Wind Turbine Generator

1000W Low Wind Start Maglev Wind Turbine Generator
Price: US $ 1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram


Vertical axis wind turbine

Lowest cut-in wind speed
1 m/s for power production

No noise, no vibrations (sound level
< 25 dB at 7 m/s from 10 m distance)

Adaptable for hybrid solutions
With solar and other sources of energy

Permanent power supply from wind/solar
And continuous battery charging

Technically advanced Maglev generator
No mechanical friction

Best price-performance ratio All weather resistant
(rain, ice, heat, salt, sand)

Independent of wind direction

Suitable for roof fixation

Maintenance-free

Safety for people and nature

Specifications


1. High efficiency, security, stablity
2. Low weight, low start-up wind speed.
3. Long service life



Characteristic:


1. Utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure
2. The start-up wind speed is very low
3. The wind energy coefficient is very high
4. The anti-wind capability is high
5. The weight of generator is very light
6. Operation is stable
7. Have no noise
8. With careful anti-corrosion treatment and good sealing
9. Maintenace free
10. Long service life

Useage


· Household, Garden, farm eolic vertical wind turbine generator, Off grid and on grid power system
· Telecom sites.
· Rural electrification programs. Island, sentry, island, sight lighting
· Make wind -solar hybrid power system


Our Service


1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed
4. Solved the problem with you during using our products


PARAMETERVERTICAL WIND TURBINE MODEL NUMBER


WKV-1000
Rated Power1KW
Size(Height / Diameter)2.1/2(M)
Blades Materialaluminum alloy
Start-up Wind Speed1m/s
Minimum Power Generation Wind Speed2m/s
Cut-in wind speed3m/s
Rated Wind Speed13m/s
Cut out Wind Speed15m/s
Survival Wind Speed60m/s
Generator TypeAC, 3 phases
Controller Output Voltage24V/48V
Controller Braking System3-Phase short circuit  by NFB brake
Ambient Temperature.-30~50 °C


More Model
Model No.Output Power(W)
WKV-100100W
WKV-200200W
WKV-300300W
WKV-400400W
WKV-600600W
WKV-10001KW
WKV-20002KW
WKV-30003KW
WKV-50005KW



Prod Model: WKV-1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: Wkv-1000
Rated Power: 1kw
Size(Height / Diameter): 2.1/2(M)
Generator Type: AC, 3 Phases
Controller Output Voltage: 48V
Controller Braking System: 3-Phase Short Circuit by NFB Brake
Ambient Temperature: -30~50 °c
Start-up Wind Speed: 1m/S
Survival Wind Speed: 60m/S
Rated Wind Speed: 13m/S
Number Of Blade: Multiple-Blade
Rotating Shaft: Vertical
Stress Way Of Blade: Resistance
Phase: 3
Hefei Wind Wing Energy Technology Co., Ltd. is the earliest one of the R & D wind energy generation equipment in China. Our company develops under the support of Chinese Wind Power Association, depends on Chinese Academy of Sciences Institute of Automation the long-term technical guidance and the close cooperation. We take the "the national initiative energy crisis subject" as our development goal. Now we have a strong R&D group, and researched and developed a profession leading WIND AND SOLAR SUPPLEMENT new energy generating system.

People are paying attention to our products, for the features: Green energy, environmental protection, regenerative and natural energy, etc. Our systems have widely applied in so many fields: City view, communication station, military army, science & education, weather department, fishing vessel, irrigation, oil well, seawater desalination, open country inspection, and so on.

As the first domestic enterprise developing the WIND AND SOLAR SUPPLEMENT new energy, we have passed ISO9001: 2000 quality and management system certification and EU CE certification. Our WIND AND SOLAR SUPPLEMENT new energy range systems are faithful and popular in the domestic and foreign clients, becoming the profession leading enterprise.

We always persist in the enterprise culture of "being a creditable person, live a worth while life", we insist on providing vast customers with the first-class goods, the top-notch technology heart and soul. We heartedly wish to intensively co-operate with old and new customers for greeting together with the challenge WIND AND SOLAR SUPPLEMENT new energy spring arrival!
