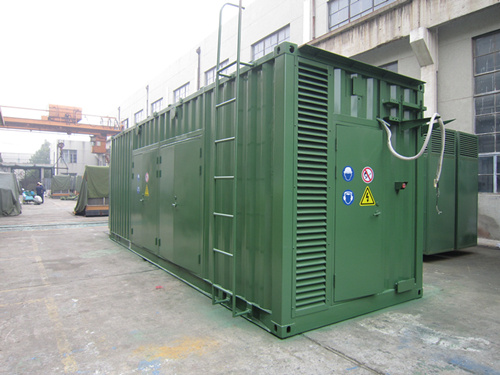

1000KW natural gas Generator set
AVESPEED Natural Gas Gensets
AVESPEED brand natural gas series products mainly use natural gas, CNG, LNG, etc. As fuel. Featured with quick startup, simple operation, fine quality and low cost, economical efficiency and complete protective function, etc., the products are widely used in oilfield, drilling platform, bank, hospital, etc. Mini-power grid or standby power supply could be established with AVESPEED natural gas gensets.
The Reasons For Choosing AVESPEED Gensets:
1. Flexible installation capacity
Customers can install appropriate number of units of generators according to specific load requirement. The unit capacity of AVESPEED generator ranges from 30kw to 600kw. The capacity of the engine can be increased easily to meet the requirement of increasing load thereby reducing shortage of power supply or avoiding excessive installation capacity.
2. Flexible system operation
With the features of quick starting, synchronization and quick on-load, when power supply is needed, customer can start generator according to specific load. No matter how long the generator operates per year, AVESPEED generator will provide power supply with consistent efficiency.
3. Flexible installation site
The installation of generator could be centralized or in distribution. If the location of the system load is frequently changed, containerized generator is an option.
4. Flexible fuel quality
AVESPEED has a generator for each of the different types/quality of gas, such as piped natural gas, associated gas, coal-bed methane and biogas. Briefly, gas with calorific value above 3.5 MJ can be used.
5. Flexible maintenance plan
Flexible maintenance plan can be made for generator in parallel operation. The customer can opt to maintain the generator by rotation, so the power supply of the system will not be interrupted during maintenance. Maintenance of one generator will not affect the normal power supply of other generators.
|
Specification of Gen-set |
|
Genset model |
1000GJZ-PwT-TEM2 |
|
Engine model |
T16V190ZL-2 |
|
Alternator model |
1FC6 506-6LA42 |
|
Rated Power(kW) |
1000 |
|
Rated current(A) |
1804.3 |
|
Rated voltage(V) |
400 |
|
Rated power factor |
0.8 (lagging) |
|
Frequency(Hz) |
50 |
|
Lube oil consumption |
≤0.8 |
|
Switch on method |
Hydraulic starting system |
|
Starting Mode |
Automatic |
|
Voltage control method |
Automatic |
|
Speed regulation method |
Electronic governor |
|
Excitation way |
Brushless |
|
Wiring method |
Three-phase,four-wire system or Three-phase, three-wire system |
|
Cooling method |
Closed type |
|
Connection type |
Flexible couping connection |
|
Dimension, L×W×H(mm) |
9215×2190×2990 |
|
Weight(kg) |
20000 |
|
Overhaul period(h) |
30000 |
|
Specification of engine |
|
Model of engine |
T16V190ZLDK-2 |
|
Configuration and type |
four stork, direct injection fuel system |
|
Cylinder arrangement |
V type 60°included angle |
|
No.of cylinder |
16 |
|
Total displacement,(L) |
95.27 |
|
Rated speed(r/min) |
1000 |
|
Idle speed(r/min) |
600 |
|
Rated power(kW) |
1100 |
|
Lube oil consumption(g/kWh) |
≤0.8 |
|
Lube oil pressure in oil main line(kPa) |
400~800 |
|
Stable speed drop(%) |
0~5 adjustable |
|
Lubricating system |
Pressure and splash lubrication |
|
Ignition method |
Spark plug ignition |
|
Starting method |
Hydraulic starting system |
|
Direction of rotation |
Clock-Wise (viewed from the front) |
|
Speed Regulation |
Electronic Governor |
|
Cooling system |
Forced circulation water cooling |
|
Output way |
flywheel output |
|
Specification of Alternator |
|
Alternator model |
1FC6 506-6LA42 |
|
Output power(kVA) |
1250 |
|
Rated speed(r/min) |
1000 |
|
Rated voltage(V) |
400 |
|
Rated current(A) |
1804.3 |
|
Frequency(Hz) |
50 |
|
Power factor(lag) |
0.8 |
|
Insulation Clause |
F |
|
Altitude |
≤1000m |
|
Direction of rotation |
Clock-Wise(Facing flywheel) |
|
Protection Clause |
IP23 |
|
Cooling Mode |
Air Cooling |
