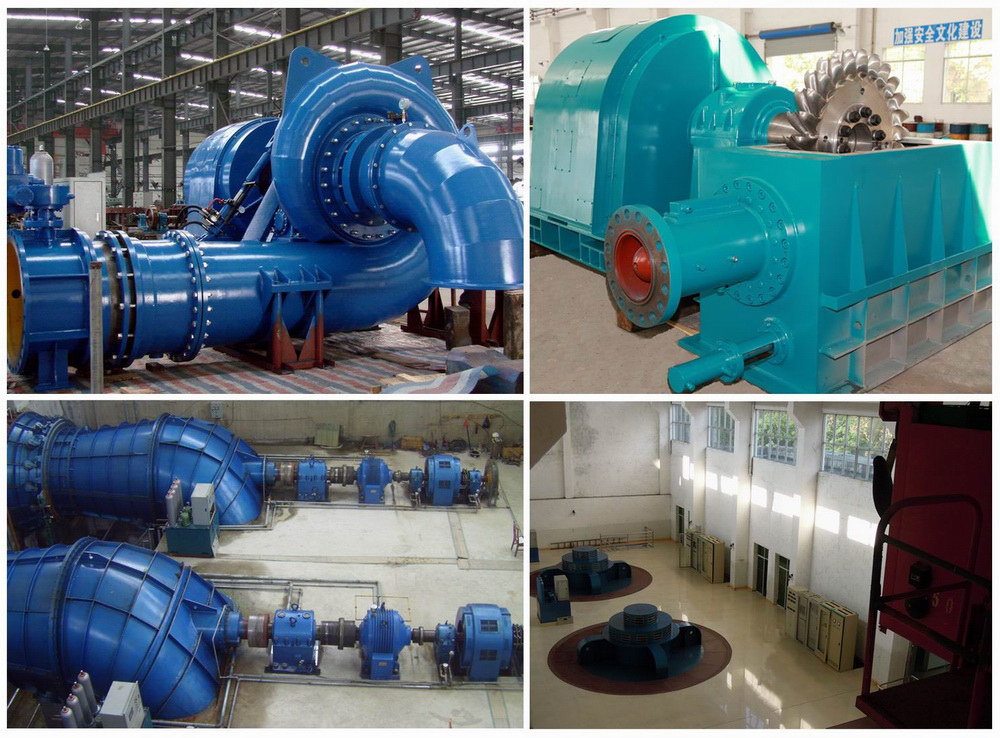

1000KW hydro turbine for water power station
Fuchun Industry Development Co., ltd Shenzhen is an experienced manufacture and engineering Company in small scale hydro power equipment ( 50Kw to 50Mw). We play the role of manufacture and EPC contractor andcould supply water to wire equipments and services.
Fuchun has a experienced and professional team to work for site survey, civil work design and power system design. Also there is a strong after sale service to serve at different projects in the world.
We can provide customers with the complete package, from the design and manufacture of the turbine, generator and control equipment through to installation, commissioning and ongoing repair and maintenance.
1. Water Turbine Generator Unit Design & SUPPLY
2. Hydropower equipment supply
3. Feasibility study of hydropower project
4. Manufacture
5. Installation & Supervision
6. Commissioning and Training service
7. Hydro power plant rehabilitant
8. Hydro power plant spares supply
9. Services
Our main procucts as below:
1. Main Product kinds
1). Kaplan: Fixed blade type and adjustable blade type turbines; Are ranging from 3 to 45m in water head, 100kW to 30MW in capacity and 0.8 to 6m in runner diameter.
2). Impulse: Turgo and Pelton type; Theirs shaft arrangements are either vertical or horizontal and they may have single nozzle, twin or multi-nozzles; Are ranging from 80 to 1, 000m in water head, 200kW to 20MW in capacity and 0.55 to 2.3 in runner diameter.
3). Tubular: They have been classified into Bulb, Pit, Siphon and"S" types in the light of their structural types; Ranging from 2 to 25m in water head, 200KW to 16MW in capacity, and 0.8m to 5.8m in runner diameter.
4). Francis: Vertical and horizontal type; Are ranging from 10 to 300m in water head, 100kW to 50MW in capacity and 0.35 to 4.0 m in runner diameter.
2. Accessory equipment:
Inlet valves: Hydraulic / electric control butterfly valves, ball valves, gate valves.
Governors: YDT, YWT, DST and TY series.
Excitations: SCR excitations, DC excitaiton systems, AC brushless exciters.
Oil pressure supply systems, control facilities, automatic control systems and so on.
We are also committed to fulfill all essential requirements with respect to quality, health, safety and continuously aim to reduce the harmful impact on the environment.
We sincerely look forward to cooperating with you if you are interested in our products.
Reference List of Some Export Projects
No. |
Country and Power Station Exported to |
Technical Parameters |
Type |
Qty |
Date of contract |
1 |
Latin America |
Rated head:305m
Rated flow:0.385m³/s
Frequency:60Hz
Outgoing line voltage:480V |
CJA475-W-80/2×6.5
SFW1000-8/1180 |
1 |
2013.06 |
2 |
South Asia |
Type:HL855a
Runner diameter:1750mm |
27Mw spare runners |
1 |
2013.06 |
3 |
Europe |
Rated head:73.8m
Rated flow:0.1325m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-55/1×7 |
1 |
2013.03 |
4 |
Europe |
Rated head:203m
Rated flow:0.312m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×8.5
SFW500-8/990 |
1 |
2013.05 |
5 |
South Asia |
Rated head:88m
Rated flow:1.41m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLA550-WJ-62
SFW1000-6/1180 |
1 |
2013.05 |
6 |
West Africa |
Rated head:210m
Rated flow:0.423m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×9.5
SFW700-8/1180 |
1 |
2013.05 |
7 |
Latin America |
Rated head:925m
Rated flow:0.26m³/s
Frequency:60Hz
Outgoing line voltage:4.16KV |
CJC601-W-100/1×5
SFW1980-6/1430 |
2 |
2012.12 |
8 |
Southeast Asia |
Rated head:4m
Rated flow:10m³/s
Frequency:60Hz
Outgoing line voltage:440V |
ZD-LH-160
SF320-36/2150 |
1 |
2012.12 |
9 |
Latin America |
Rated head:128m
Rated flow:0.6+0.3m³/s
Frequency:60Hz
Outgoing line voltage:440V |
CJA475-W-80/2×9
SFW614-12/1180
CJA475-W-80/2×6.5
SFW302-12/990 |
2 |
2012.11 |
10 |
Europe |
Rated head:48.51m
Rated flow:0.351m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-55B/1x8.5 |
1 |
2012.11 |
11 |
Europe |
Rated head:47.48m
Rated flow:0.38m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL110-WJ-42 |
1 |
2012.11 |
12 |
Europe |
Rated head:25.44m
Rated flow:0.332m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
13 |
Europe |
Rated head:35.19m
Rated flow:0.3m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
14 |
Europe |
Rated head:37.82m
Rated flow:0.291m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
15 |
Latin America |
Rated head:60m
Rated flow:1.24m³/s
Frequency:60Hz
Outgoing line voltage:440V |
HLA575c-WJ-56
SFW600-8/990 |
2 |
2012.8 |
16 |
Europe |
Rated head:58.1m
Rated flow:0.169m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-40/1×9
SFW100-8/590 |
1 |
2012.04 |
17 |
Latin America |
Rated head:38m
Rated flow:1.64m³/s
Frequency:60Hz
Outgoing line voltage:440V |
HL220-WJ-50
SFW470-8/990 |
1 |
2012.04 |
18 |
Europe |
Rated head:43m
Rated flow:0.59m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL110-WJ-42
HLD54-WJ-40 |
2 |
2012.03 |
19 |
South Asia |
Type:HL855a
Runner diameter:1750mm |
27Mw spare runners |
3 |
2011.11 |
20 |
Europe |
Rated head:134m
Rated flow:0.25m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA475-W-80/2×6.5
SFW250-10/850 |
2 |
2011.06 |
21 |
Europe |
Rated head:228m
Rated flow:0.4m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA475-W-85/1×9.5
SFW715-8/1180 |
3 |
2011.05 |
22 |
Europe |
Rated head:61.8m
Rated flow:0.221m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-42/1×10
SFW100-8/590 |
1 |
2011.03 |
23 |
Europe |
Rated head:379.7m
Rated flow:0.685m³/s
Frequency:50Hz
Outgoing line voltage:10.5KV |
CJA475-W-105/2×7.5
SFW2150-8/1730 |
1 |
2010.12 |
24 |
Europe |
Rated head:461.6m
Rated flow:0.786m³/s
Frequency:50Hz
Outgoing line voltage:10.5KV |
CJA475-W-115/2×8
SFW3000-8/1730 |
1 |
2010.12 |
25 |
Europe |
Rated head:29m
Rated flow:3.2m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD41-WJ-42
HLD74-WJ-60 |
2 |
2010.12 |
26 |
Middle Asia |
Rated head:36m
Rated flow:1.67m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL295-LJZ-50
SF500--6/850 |
5 |
2010.12 |
27 |
South Asia |
Rated head:206m
Rated flow:0.89m³/s
Frequency:50Hz
Outgoing line voltage:6.6kV |
CJA475-W-100/2×10
SFW1500-10/1430 |
2 |
2010.08 |
28 |
Southeast Asia |
Rated head:385m
Rated flow:11.24m³/s
Frequency:50Hz
Outgoing line voltage:13.8kV |
(37.5Mw)HL69-LJ-205
SF37500-10/3600 |
2 |
2010.02 |
29 |
East Asia |
Rated head:206.8m
Rated flow:0.358m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×9
SFW570-8/990 |
1 |
2010.04 |
30 |
South Asia |
Rated head:47.5m
Rated flow:2.62m³/s
Frequency:50Hz
Outgoing line voltage:6.6kV |
HLA696-WJ-68
SFW1000-8/1180 |
3 |
2010.03 |
31 |
Europe |
Rated head:35m
Rated flow:4.25m³/s
Frequency:50Hz |
HLA696-WJ-82
SFW800-12/1430
HLJF2504-WJ-56
SFW400-8/990 |
3 |
2010.01 |
32 |
Europe |
Rated head:265m
Rated flow:0.734m³/s
Frequency:50Hz
Outgoing line voltage:6.3kV |
CJA475-W-110/2×8.5
SFW1600-10/1730 |
2 |
2009.07 |
33 |
Europe |
Rated head:289m
Rated flow:1.775m³/s
Nozzle No.:2
Bucket No.: 20
Runner Outer Diameter: 1600mm
RUNNER DIAMETER: 1300mm |
4000KW Pelton runner and shaft spares |
3 |
2009.06 |
34 |
Southeast Asia |
Rated head:86.2m
Rated flow:22.5m³/s
Frequency:50Hz
Outgoing line voltage:10.5kV |
(17Mw) HLA883-LJ-155
SF17000-12/3250 |
2 |
2008.01 |
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
