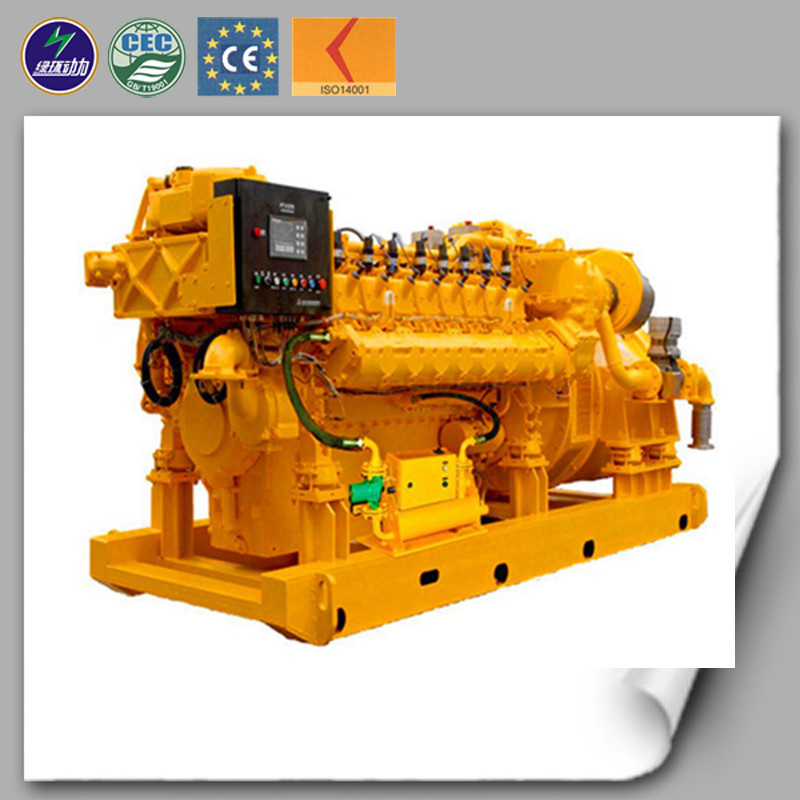

1000kw Biomass Generator with 16V190 Engine for Biomass Gasification Power

1MW biomass gasification power plant biomass generator price biomass electric generator

1. Main composition of biomass gas:

After being gasified, the basis of gas is CO(20%), H2(9%), CH4(12%),CO2(12%), N2(52%), The lower heating value is 5-6 MJ/Nm3.
Efficiency of gasification:1 kg dried material can generate 2 Nm3 gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw.h power.

2. Biomass generator working principle:

1) Condition: Change biomass into biomass gas by biomass gasifier
2) Gas mix with air outside of engine's cylinders
3) Mixed gas into cylinder and explode inside of cylinders to change gas energy into power force
4) Power force drive alternator to generator electric power
5) Water circules form water tank to engine to bring the engine heat
6) Optional device of CHP, silent canopy and mobilable trailer.
7) Control panel system control all operation

3.

Model Number (Engine Type)	LHBMG1000
Brand Name	LVHUAN
Prime Power/Standby Power	850KW/1000KW
Rated Speed	1000/1200RPM
Rated Frequency	50/60Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 wire
Voltage Stability	≤±2%
Voltage transient	≤±10%
Voltage Stable time	≤1s
Heat consumption	≤11mj/kw.h
Lubricant Consumption	≤1.0g/kw.h
Engine Capacity	97.53 L
Cylinder Number	16-V
Cylinder Bore	190mm
Stroke	215mm
Starting System	DC 24V electric motor
Cooling method	water cooler
Lubricant method	Passive and flying lubricant
Isolation class	H
Protection	IP23
Alternator	Siemens
Power Factor	0.8 lagging
Exciting method	brushless
Colour	your choice
Certificates	ISO 9001:2008, CE
Warranty	1 year or 1000 running hours which arrives first
Type	Open
Control system	Automatic alarm system
Size	3692*2537*2405mm
Weight	13000kg

4. Machine supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow  supercharger, compression ration is  1:8,meet engine's  requirement   for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
 Full automatic system for optional: ATS for automatic switch form national grid power to generated power, double direction.

5. Requirements for biomass gas:

Within 1m from pressure regulating value of gas intake;

Gas temperature<40ºC

The ratio of CH4 in natural gas >70%;

Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min;

H2S≤200mg/Nm3;

NH3≤20mg/Nm3;

Tar content≤20mg/ Nm3;

Moisture content ≤40g/Nm3;

Impurity particle size ≤5µm, impurity content ≤30 mg/Nm3

Heat value≥4.2MJ/Nm3

 6. Jinan Lvhuan Mechanical Equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and alfer-sale service of the new energy-saving generator products.

We have attained ISO9001:2000 and CE certifications, and carries them out in every production procedure. With the strong capacity of researching and designing, we can not only provide you with quality products , but also your good partnership in the general Power Generation Program, including: consulting service, project designing, construction, installation ,adjustments and facilities maintenance .
