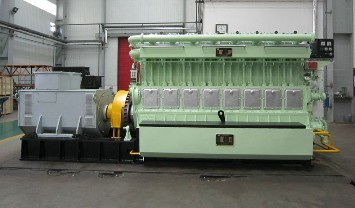

Gas generator type: 1000kw2000kw3MW4MW5MW biomass gasification plants/biomass generator; Biomass gasification power plant; Biomass power generation; Biomass power plant/biomass power; Bio mass plant/biomass plant; Natural gas generator; Biogas generator. Biomass generator sets
|
Model Type |
1000GF-SDZ |
|
Ourput Power (KW) |
1000 |
|
Voltage V |
400/230 |
|
Engine type |
16V165RQ |
|
Alternator model |
1FC6356-6L42A |
|
Rated Current |
1800 |
|
Compression ratio |
11: 1 |
|
Inlet pressure |
3KPA-10KPA |
|
Working pressure |
1.6 MPA |
|
Aspiration |
Turbocharge |
|
Arrangement of cylinder |
16V,
4-stroke-cycle |
|
Bore/Stroke |
165/185 |
|
Connection model |
3 Phase 4 wire |
|
Voltage regulate range |
± 5% |
|
Noise |
112 dB(A) |
|
Engine speed (rpm) |
1000 |
|
Fuel consumption MJ/kwh |
11.5 |
|
Exaust temp |
≤ 550 |
|
Ignition mode |
Spark-Ignited |
|
Starting mode |
24V DC Power |
|
Isulation |
G2 |
|
Excitement --B |
Brushless excited |
Dimension:
LxWxH (mm) |
5000× 1742× 1912 |
|
Weight (kg) |
12500 |
Founded in 2013 and located inShenzhen economic development zone, SHENGZHEN SHI QIANHAI ZHONGSHA PETROCHEMICAL INDUSTRY TRADE CO.,LTD Covers an area of 400, 000 square meters, with 160, 000 square meters area of structure. Currently, there is a technological R&D and engineering service team of more than one hundred talents, leading by doctors, senior engineers and engineers.
The technological R&D ability and production capacity have reached state-of-the-art level. At present there are 39 departments altogether, including departments for home and abroad sale, technological research and development, quality test, process control, equipment, supply, procurement, financing, auditing, human resources, rear services, 8 manufacture workshops and after- sale service etc.
