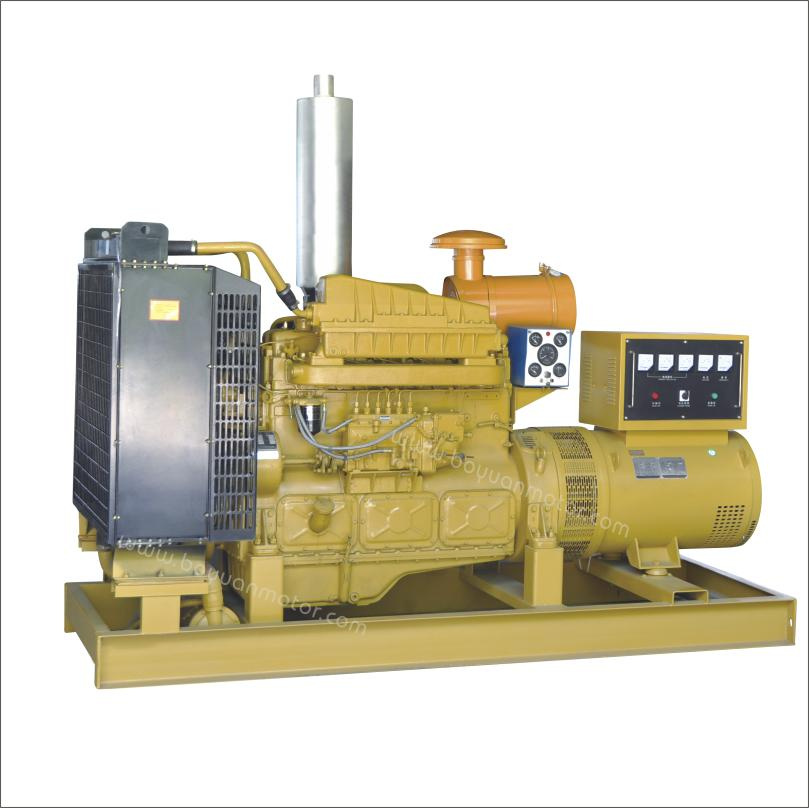

Generator Set 8KVA~1500KVA
1, UK Origin Perkins Diesel Engine
2, Stamford/Leroy-somer/Marthon Alternators
3, 1-Year Warranty
General Data Sheet
Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
World most famous brand diesel engine. UK origin Perkins series engine.
World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc
Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
Full range protect function and alarm shutdown feature.
ATS, Base Fuel Tank as Options
Genset
Model | Prime / Standby Power | Engine Model | Alternator Model | No. of Cylinder | Fuel Consumption (L/H) | Genset Size (mm) | Weight (KG) |
| KVA | KW | Perkins | Stamford | L | W | H |
| GF3-07P | 9/10 | 7.2/8 | 403D-11G | BY164B | 3 | 2.4 | 1320 | 552 | 1258 | 400 |
| GF3-10P | 13.5/15 | 10.8/12 | 403D-15G | BY164C | 3 | 3.48 | 1320 | 552 | 1258 | 450 |
| GF3-16P | 20/22 | 16/17.7 | 404D-22G | BY184E | 4 | 5.4 | 1320 | 552 | 1258 | 470 |
| GF3-24P | 30/33 | 24/26.4 | 1103A-33G | BY184G | 3 | 7.1 | 1470 | 620 | 1280 | 520 |
| GF3-30P | 37/41 | 30/33 | 1103A-33TG1 | BY184H | 3 | 10.7 | 1470 | 620 | 1280 | 580 |
| GF3-36P | 45/50 | 36/40 | 1103A-33TG1 | BY184J | 3 | 10.7 | 1470 | 620 | 1280 | 620 |
| GF3-48P | 60/65 | 48/52 | 1103A-33TG2 | BY224E | 3 | 14.1 | 1470 | 620 | 1280 | 650 |
| GF3-52P | 65/73 | 52/58 | 1104A-44TG1 | BY224F | 4 | 14.8 | 1590 | 710 | 1300 | 780 |
| GF3-64P | 80/88 | 64/70 | 1104A-44TG2 | BY224G | 4 | 18.7 | 1590 | 710 | 1300 | 850 |
| GF3-72P | 90/100 | 72/80 | 1104C-44TAG2 | BY224G | 4 | 21 | 1800 | 790 | 1350 | 980 |
| GF3-80P | 100/110 | 80/88 | 1104C-44TAG3 | BY274C | 4 | 24 | 1800 | 790 | 1350 | 1050 |
| GF3-100P | 125/40 | 100/112 | 1006TAG | BY274E | 6 | 29 | 2300 | 820 | 1380 | 1200 |
| GF3-120P | 150/165 | 120/132 | 1006TAG2 | BY274F | 6 | 41 | 2450 | 880 | 1500 | 1350 |
| GF3-144P | 180/200 | 144/160 | 1106C-E66TAG4 | BY274G | 6 | 48.5 | 2600 | 910 | 1680 | 1550 |
| GF3-160P | 200/220 | 160/176 | 1306C-E87TAG3 | BY274H | 6 | 45.2 | 2980 | 980 | 1840 | 2050 |
| GF3-180P | 225/245 | 180/196 | 1306C-E87TAG4 | BY274J | 6 | 48.5 | 2980 | 980 | 1840 | 2150 |
| GF3-200P | 250/275 | 200/220 | 1306C-E87TAG6 | BY444C | 6 | 45 | 2980 | 980 | 1840 | 2550 |
| GF3-280P | 350/400 | 280/320 | 2206C-E13TAG2 | BY444E | 6 | 70.6 | 3100 | 1050 | 1980 | 2950 |
| GF3-320P | 400/450 | 320/360 | 2206C-E13TAG3 | BY444F | 6 | 81.1 | 3100 | 1050 | 1980 | 3000 |
| GF3-360P | 450/500 | 360/400 | 2506C-E15TAG1 | BY544C | 6 | 99 | 3300 | 1150 | 2195 | 3300 |
| GF3-400P | 500 / 550 | 400 / 440 | 2506C-E15TAG2 | BY544D | 6 | 106 | 3300 | 1150 | 2195 | 3950 |
| GF3-480P | 600 / 660 | 480 / 528 | 2806A-E18TAG1A | BY544E | 6 | 95 | 3500 | 1150 | 2195 | 4550 |
| GF3-520P | 650 / 712 | 520 / 570 | 2806A-E18TAG2 | BY544F | 6 | 104.9 | 3500 | 1150 | 2195 | 4700 |
| GF3-580P | 725 / 800 | 580 / 638 | 4006-23TAG2A | BY634B | 6 | 157 | 3900 | 1470 | 2195 | 5000 |
| GF3-640P | 800 / 900 | 640 / 720 | 4006-23TAG3A | BY634C | 6 | 172 | 4400 | 1470 | 2195 | 5250 |
| GF3-728P | 910 / 1000 | 728 / 800 | 4008TAG1A | BY634D | 8 | 206 | 4800 | 2050 | 2445 | 7400 |
| GF3-800P | 1000 / 1100 | 800 / 880 | 4008TAG2A | BY634E | 8 | 214 | 4800 | 2050 | 2445 | 7650 |
| GF3-1000P | 1250 / 1375 | 1000 / 1100 | 4012-46TWG2A | BY634G | 12 | 205 | 5000 | 2300 | 2875 | 8150 |
| GF3-1090P | 1363 / 1500 | 1090 / 1200 | 4012-46TWG3A | BY734B | 12 | 205 | 5000 | 2300 | 2875 | 8950 |
| GF3-1200P | 1500 / 1650 | 1200 / 1320 | 4012-46TAG2A | BY734C | 12 | 201 | 5000 | 2300 | 2875 | 9150 |
| GF3-1360P | 1700 / 1875 | 1360 / 1500 | 4012-46TAG3A | BY734D | 12 | 212 | 5000 | 2300 | 2875 | 11200 |
| GF3-1400P | 1750 / 1925 | 1400 / 1540 | 4016TAG | BY734E | 16 | 205 | 5400 | 2650 | 2650 | 13250 |
| GF3-1460P | 1825 / 2000 | 1460 / 1600 | 4016TAG1A | BY734E | 16 | 206 | 5400 | 2650 | 2650 | 15500 |
| GF3-1640P | 2050 / 2250 | 1640 / 1800 | 4016TAG2A | BY734F | 16 | 209 | 5400 | 2650 | 2650 | 18000 |
Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.
BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.
BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.
All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.
As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
Warranty policy
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
