| Price: | US $ 199999/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

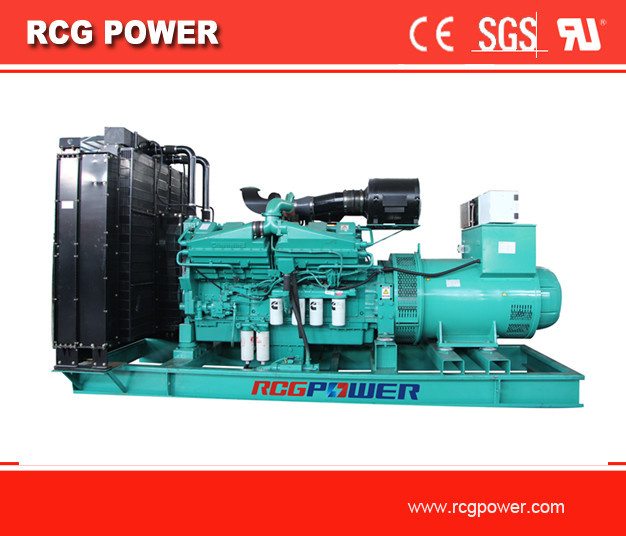

| MODEL | R-CC1000 |
PRIME POWER (KVA/KW) | 1000/800 |
| STANDBY POWER(KVA/KW) | 1100/880 |
| Rated voltage(V) | 400/230 |
| Rated speed(rpm) | 1500 |
| Rated frequency(Hz) | 50 |
| Power factor | 0.8 |
| Ambient temperature(ºC) | 40 |
| Altitude(m) | 1000 |
| Connection type | 3 phase 4 wires |
| ENGINE MANUFACTURER | CUMMINS |
Model | KTA38-G5 |
| Rated Power(kW) | 880 |
| No. of cylinders & configuration | In-Line 12 cylinders |
| Method of operation | 4-stroke |
| Speed regulation | Electric governor |
| Starting system | DC 24V Electronic start |
| Cooling method | Closed-circuit cooling system |
| Total displacement(L) | 30.48 |
| Compression ratio | 14.0:1 |
| Bore×Stroke(mm) | 140×165 |
| 100% Load fuel consumption(L/h) | 202 |
| ALTERNATOR MANUFACTURER | STAMFORD |
| Number of Phase | 3 |
| Connection Type | 3Phase and 4Wires |
| Number of Bearing | 1 |
| Power Factor | 0.8 |
| Protection Grade | IP23 |
| Terminal | 12 |
| Winding/ Pitch | 100% Copper 2/3 Pitch |
| Cooling Fan | Cast alloy aluminum |
| Exciter Type | Brushless, Self-Exciting |
| Insulation Class, Temperature Rise | H/H |
| Telephone Influence Factor( TIF) | TIF <50 / THF<2% |
| Total Harmonic TGH/THC | <1.5% at no load / <5% at load |
| Voltage Regulation, Steady State | ≤±1% |
| Sustained Short-Circuit Current | 300%(3 in):10s |
| CONTROL SYSTEM | DSE SERIES |
| Prod Model: | R-CC1000 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cummins Engine Model: | Kta38-G5 |
| Type: | Basic Diesel Generator |
| Installation Method: | Fixed |
| Stroke: | Four Stroke |
| Cooling Method: | Water Cooling |
| Output Type: | AC Three Phase |
