Generator Manufacturers and Factories

Home Generator Products 1000kVA Cummins Diesel Generator

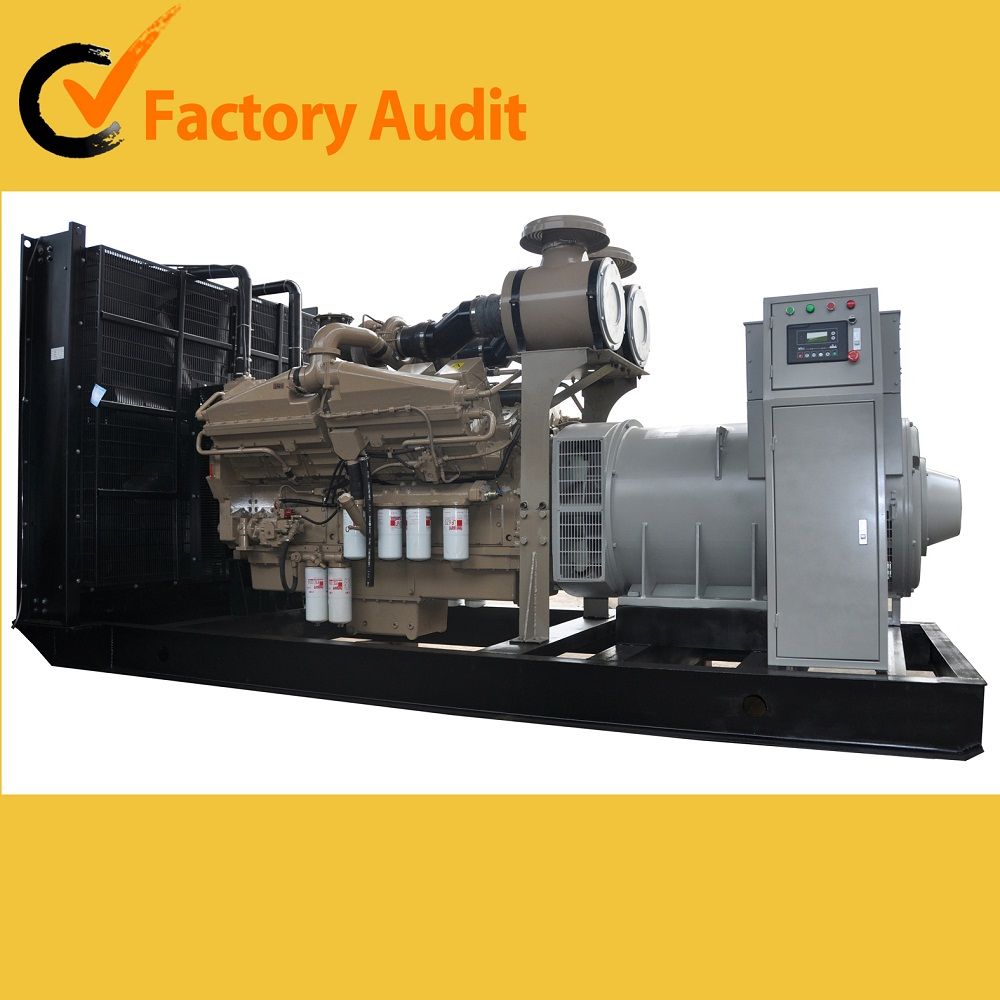

1000kVA Cummins Diesel Generator

1000kVA Cummins Diesel Generator
Price: US $ 100000/Piece
Trade Terms: FOB
Min Order: 1set
Pay Type: L/C,T/T,D/P
1000kVA Cummins diesel generator
1-Cummins powered generator
2-Cummins global guarrantee
3-Cummins OEM

New Cummins power diesel generating sets

Generator set:

Model: SFJ1100

Rated Power: 800KW/100kVA

Standby Power: 880KW/1100kVA

Rated speed: 1500 r/min

Noise Level: 70-75dB

Factor: COSΦ=0.8(lagging)

Phase/wire: 3 phase 4 wire

Rated Currency: 1520 AMPS

Protection: Low oil-pressure, High water temperature, Over-speed, Over-current.

Engine of diesel generator set:

Brand: Cummins

Model: KTA38-G5

Origin: Manufactured by Chongqing Cummins Engine Co., Ltd

Cylinders: 12

Engine Power: 880kw/1100kVA

Start Model: DC24V electric start

Cylinders Layout: Line

Displacement: 38L

Speed-Governing: Electric

Steady Speed Droop: ≤ 1%

Alternator of diesel generator set:

Brand: Stamford

Model: HCI634J

Protection: IP23

Origin: Manufactured by Cummins Generator Technologies China

Rated Voltage: 220/380V(Adjustable)

Frequency regulation: ≤ ± 0.5 %(stable)

Voltage Control: AVR

Controller of generator set:

Brand: DEEPSEA Smartgen

Optional for diesel generator set:

1. ATS(Automatic Transfer switch), it can start generator set when the main power is off, once the main power comes back, the generator set will turn off automaticly.

And ATS have the function of AMF (automatic Main power failure)

2. MCCB(Molded case circuit breaker)

It can protect the loading machine and the diesel generator.

3. Battery charger(float charger)

When the generator hasn't been used for a long time, the batteries will be no power, in that way, you can't start the generator, but the battery charger can charge the batteries from the main power.

4. Extra daily fuel tank

It will be requested while the base fuel tank capacity is not enough for daily fuel consumption

5. Paralleling system

This system can make several generators work together and automatically distribute the load according to set.

6. Remote Control Panel

Which can control the generator by computer, if use a RS484 or RS232 digital cable to connect the generator to the computer.

7. Water separate(additional cooling system)

If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.

8. Spare Parts of Cummins engine

All the spare parts of each Cummins engine are supplied at very competitive price.
Prod Model: FJ1100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Eninge: Cummins Kta38-G5
Alternator: Stamford
Certificate: ISO, SGS, CE
Rated Power: 1000kVA/800kwe
Output Type: AC Three Phase
Cooling Method: Water Cooling
Stroke: Four Stroke
Installation Method: Fixed
Type: Basic Diesel Generator
Singfo, one of the leading worldwide suppliers of power generators, is located in beautiful Zhujang Delta of China with the establishment in 1996. The Company has an office overseas as well as fourteen branches all over the country with more than four-hundred staff members through its years of development, of which has formed a chain from production. Sales, maintenance to customer service.

To meet its client's requirements, Singfo has set up and implemented a well-regulated management system targeting towards competitive price, excellent quality and reputable customer service in long-run. The Company has fostered a team focused on self-improvement, all of whom are rich in experience, professional at technology and dutiful to their work. Moreover, our services also cover technical output, scientific research, project design and construction.
