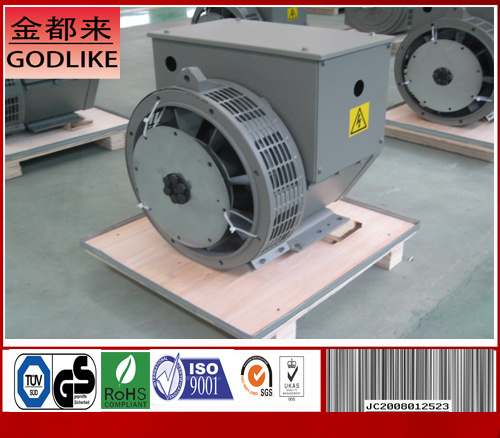

100% Pure Copper 40kw/50kVA Copy Stamford Alternator (JDG224D)
Basic Info.
Model NO.: JDG224D
Export Markets: Global
Additional Info.
Trademark: GODLIKE
Packing: In Strong Plywood
Standard: IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C2
Origin: China
HS Code: 8501610000
Production Capacity: 8000 Units Per Year
Product Description
Specifications
1) Power range: 8.8kw.
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 100% famous brand copper wire;
Parameters
1) Rated voltage 400V, 110V-690V for option
2) Three phase, single phase for option
3) Drip-leak-proof structure: IP22/23 protection class
4) Insulation class H
Why Godlike:
World class gensets with components from industry stalwarts.
Built to ISO 9001 standards.
Guaranteed for 2000 hrs /24 months, whichever is earlier.
Prompt, friendly service; Ensuring long, trouble free genset performance.
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply: We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service: We provide perennial major overhaul and maintenance service.
| Model | 50hz/1500rpm/3 phase | 60hz/1800rpm/3 phase |
| 190~454V | 100~240V/230~460V |
| KVA | KW | KVA | KW |
| JDG 224C | 42.5 | 34 | 55 | 44 |
| JDG 224D | 50 | 40 | 65 | 52 |
| JDG 224ES | 56.25 | 45 | 70 | 56 |
| JDG 224E | 60 | 48 | 75 | 60 |
| JDG 224F | 72.5 | 58 | 93 | 74.4 |
| JDG 224GS | 80 | 64 | 100 | 80 |
| JDG 224G | 85 | 68 | 103 | 82.4 |
| JDG 224H | 94 | 75 | 115 | 92 |
