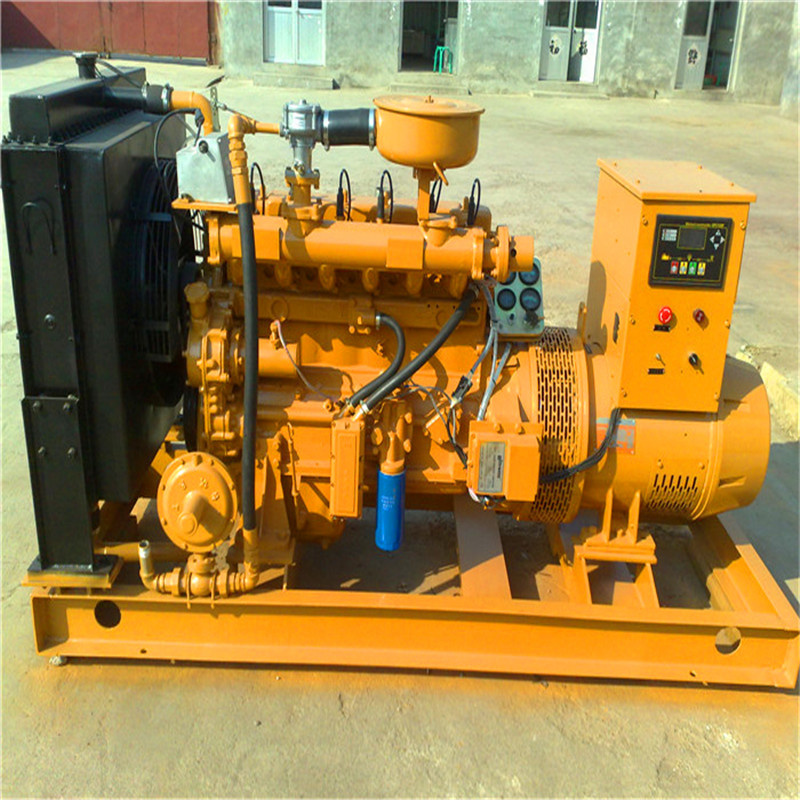

Home Generator Products 10-600 Kw Water Cooling Biomass Gas Generator Set Price

10-600 Kw Water Cooling Biomass Gas Generator Set Price

10-600 Kw Water Cooling Biomass Gas Generator Set Price
Price: US $ 25600-29600/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Biomass is biological material derived from living, or recently living organisms. It most often refers to plants or plant-based materials which are specifically called lignocellulosic biomass. As an energy source, biomass can be used directly via combustion to produce heat. It is a renewable energy source, For the use of the term in ecology.
Shandong Lvhuan Power Equipment Co., Ltd is a pioneer and practitioner in green energy and renewable resources.

Main composition of biomass gas:
After being gasified, the basis of gas is CO(20%), H2(9%), CH4(12%), CO2(12%), N2(52%), The lower heating value is 5-6 MJ/Nm3.
Efficiency of gasification: 1 kg dried material can generate 2 Nm3 gas, conversation rate is more than 85%. 1 kg dry material can generate 1 kw. H power.

Requirements for biomass gas:
Within 1m from pressure regulating value of gas intake;
Gas temperature<40º C
The ratio of CH4 in natural gas >70%;
Pressure of natural gas: 3--10 kpa, rate of pressure change <1 kpa/min;
H2S≤ 200mg/Nm3;
NH3≤ 20mg/Nm3;
Tar content≤ 20mg/ Nm3;
Moisture content ≤ 40g/Nm3;
Impurity particle size ≤ 5µ M, impurity content ≤ 30 mg/Nm3
Heat value≥ 4.2MJ/Nm3

Ignition system: We adopt ignition system of magneto which produced by American ALTRONIC company, including: Magneto, high-tension coil, sparking plug.
Starting system: DC24V electric motor, 12v190 adopt ST710 of direct-current.
Pressure charging system: Pulse Mixed-flow supercharger, compression ration is 1: 8, meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Scope of application: Biogas generator set is widely used in the many area where can generate biogas, like rubbish landfill, livestock excrement disposal, industrial organism disposal.
Parameter of Straw Gas Generator Set
Model Number (Engine Type)LHBMG100
Brand NameLVHUAN
Prime Power/Standby Power80KW/100KW
Rated Speed1500/1800RPM
Rated Frequency50/60Hz
Rated Voltage400V/230V
PhaseAC 3-Phase, 4 wire
Voltage Stability≤±2%
Voltage transient≤±10%
Voltage Stable time≤1s
Heat consumption≤11mj/kw.h
Lubricant consumption≤1.0g/kw.h
Engine Capacity12.90 L
Cylinder Number6
Cylinder Bore135mm
Stroke150mm
Starting SystemDC 24V electric motor
Cooling methodwater cooler
Lubricant methodPassive and flying lubricant
Isolation classH
ProtectionIP23
AlternatorChinese Stamford
Power Factor0.8 lagging
Exciting methodbrushless
Colouryour choice
CertificatesISO 9001:2008, CE
Warranty1 year or 1000 running hours which arrives first
TypeOpen
Control systemAutomatic alarm system
Size2850x1100x1750mm
Weight1900kg

Service
1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings:like power station floor plan,engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.
3.After-sale service:
(1)Our every engineers are in charge of different area,we will response periodically and support you technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.
FAQ:
1.How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour. 1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy. E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
  A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
    A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare      parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Please feel free to ask question and quotation.
Charles Li
Shandong Lvhuan Power Equipment Co.,Ltd
Tel:0086-531-62337767
Fax:0086-531-62337575
Website:www.lvhuandongli.com
Prod Model: LHBMG120
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Exciting Method: Brushless
Gas Mixing Type: Outside
Gas Pressure: 3-20kpa
Intake Mode: Natural Intake
Cooling Mode: Circulating Water Cooling
Sparking Mode: Sparking Plug
Gas Source: Biomass Gas
Power: 50-200kw
Certification: CE, ISO
Standard: Standard
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
