High Voltage Load Bank

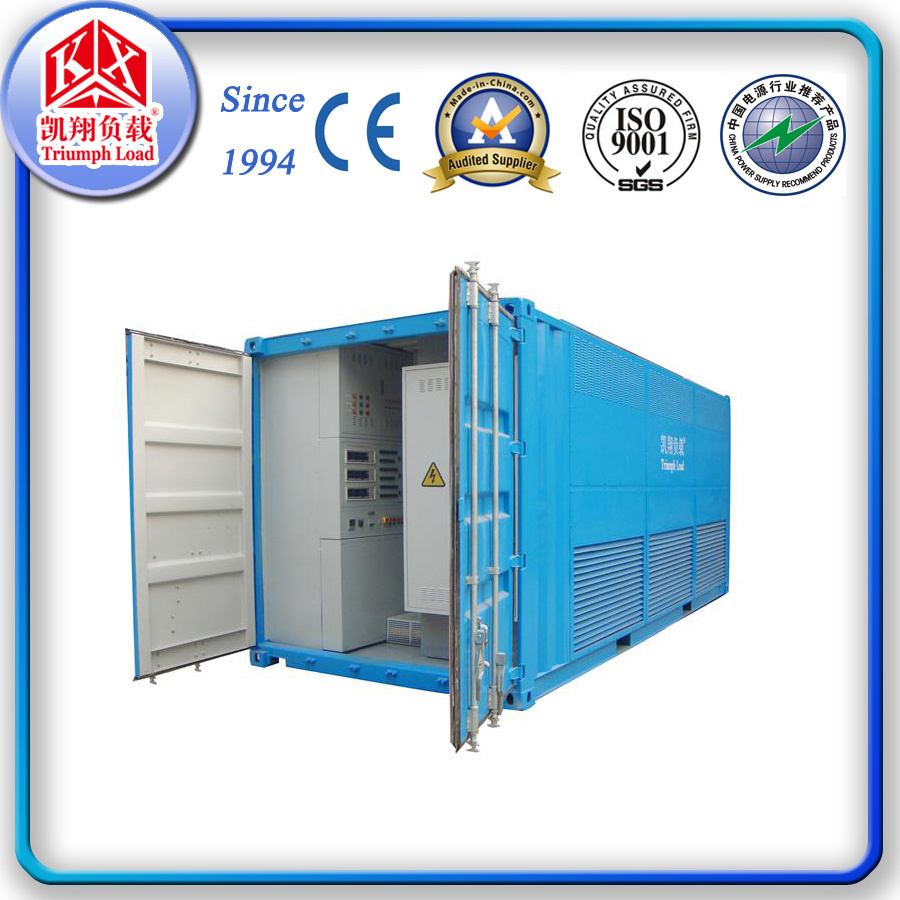

AC10.5-2000KW Load Bank we made this year.
Power: 2, 000kw; Voltage: 10.5kv; PF: 1
Automatic AC load bank
Resistive/inductive/capacitive Automatic load bank
Automatic AC load bank mainly are used to test diesel generator set, high-power ups on-line, inverter, switch power and for electric power, telecom department and manufacturer. It is of high power density, no red hot phenomenon and automatic protection function overheated. It can't be overheated and broken when the fans stop working. It can test voltage and current according to client's request, and provide scientific test measures for high-power AC equipment.
Main functions
1. Users can set adjustable discharge power according to capability parameter and test request.
2. Discharge time can be set: Load can be closed time out.
3. Voltage and current value can be displayed with digital meter.
Display meters options:
Automatic AC load bank: Power, voltage and current test value can be displayed with digital table
Intelligent AC load bank (LED): Multi-function digital special meter of 0.5 step can be test and display: AC voltage, current, active power, power factor and frequency. It can communicate with PC via RS485 interface.
Intelligent AC load bank (LCD): Special LCD meter display: AC voltage, current, active power, power factor and voltage frequency. It is of the harmonic analysis function of 1-40 times, and can communicate with PC via RS485 interface.
Way of Working | Continuous Working |
Cooling | Forced air cooling,Horizontal inlet air,Vertical cooling |
Casing Structure | Container, with a ladder, air inlet and outlet with mesh enclosure and protection door |
Transportation | Hoisting, there are lifting lug in top of casing |
Casing Color | Grey(RAL7035)or as per customer's requirement |
