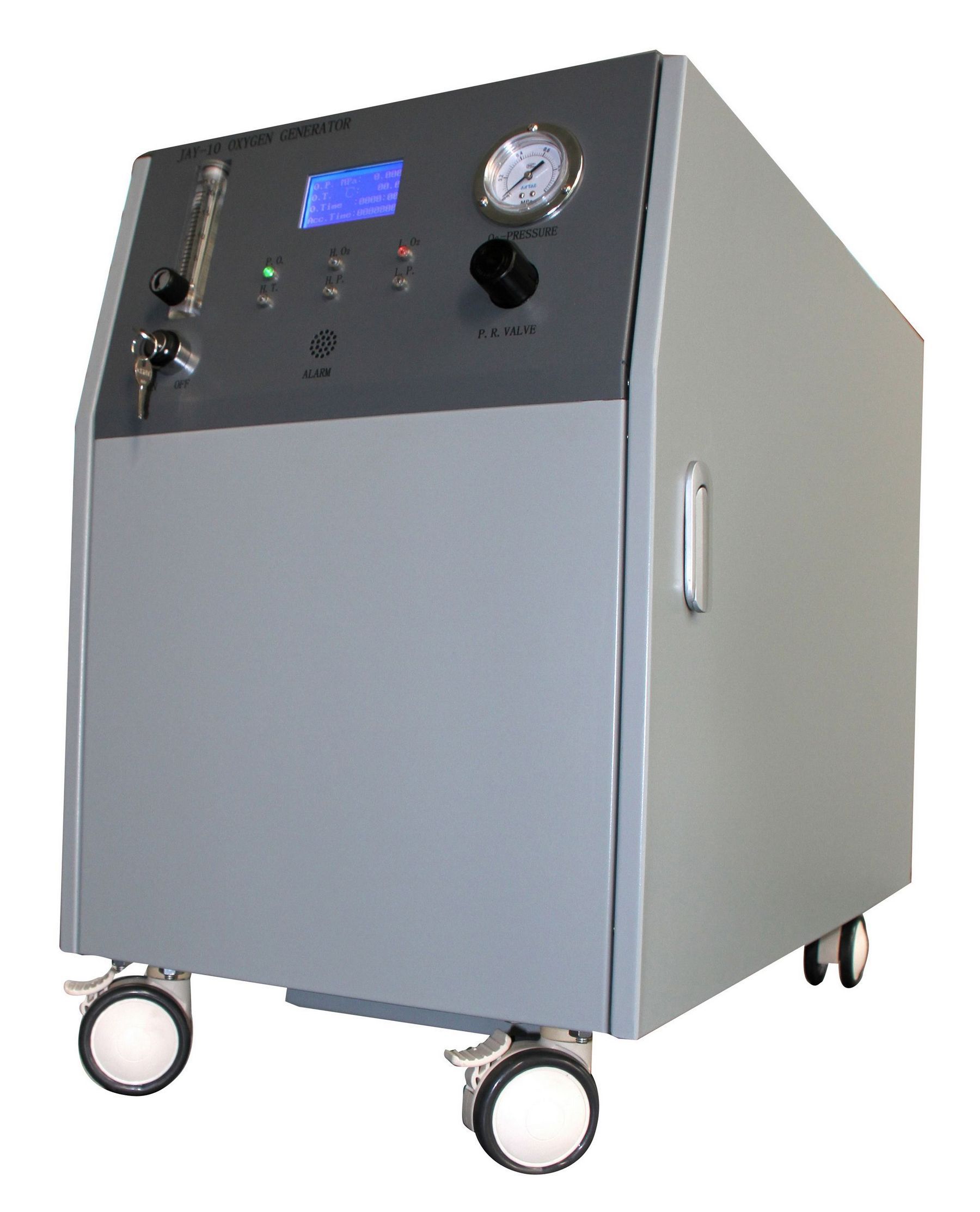

0.14/0.35/0.40 MPa High Pressure Oxygen Generator
Features:
1. Automatic on and off
2. Manually remove the alarm
3. Emergency stop button
4. Audio and visual alarm for high&low pressure
5. Full digital control system
6. Low purity alarm function
7. Applied in surgcal especially connecting with ventiator or anesthesia machine.
Specifications:
1. Oxygen flow(L/min): 10/15/20
2. Air Flow (L/min): 10/15/20
3. Oxygen outlet pressure(Mpa): ≥ 0.38 Mpa
4. Air outlet pressure(Mpa): ≥ 0.38 Mpa
4. Oxygen concentration: ≥ 90%
5. Sound level: ≤ 60dB
6. Power: AC220V± 10%, 50/60± 1Hz; AC110V± 10%, 50/60± 1Hz
7. Power Consumption: ≤ 1250W
8. Alarm: Power failure alarm, High&Low pressure alarm
9. Net weight: 85Kgs
10. Size(cm): 530 x 600 x 700 mm
|
Model |
JAY-10-4.0 |
JAY-15-4.0 |
JAY-20-3.5 |
|
Rated power(VA) |
850 |
1500 |
1800 |
|
Operation voltage(V/Hz) |
AC220V±22V 50Hz±1Hz |
AC220V±22V 50Hz±1Hz |
AC220V±22V 50Hz±1Hz |
|
Oxygen Flow(L/min) |
0~10 |
0~15 |
0~20 |
|
Oxygen concentration(V/V) |
93%±3% |
93%±3% |
93%±3% |
|
Outlet pressure (MPa) |
≤0.40 |
≤0.40 |
≤0.35 |
|
Alarm |
Low purity
High&low pressure |
Low purity
High&low pressure |
Low purity
High&low pressure |
|
Sound level (dB) |
≤55 |
≤60 |
≤60 |
|
Electrical category |
ClassIType B |
ClassIType B |
ClassIType B |
|
Product category |
ClassII Type a |
ClassII Type a |
ClassII Type a |
|
Dehumidifier way |
Automatic Dehumidifier |
Refrigerated air Dryer |
Refrigerated air Dryer |
|
Net weight (Kg) |
65 |
85 |
85 |
|
Dimension (mm) |
900*400*660 |
800*580*660 |
800*580*660 |
|
Low purity alarm |
When oxygen purity is 84%, the blue lamp is on, when oxygen purity is below 84% ,red lamp is on, indicating low purity. (Accuracy±2%) |
When oxygen purity is 84%, the blue lamp is on, when oxygen purity is below 84% ,red lamp is on, indicating low purity. (Accuracy±2%) |
When oxygen purity is 84%, the blue lamp is on, when oxygen purity is below 84% ,red lamp is on, indicating low purity. (Accuracy±2%) |
|
Relief valve pressure |
0.5MPa |
0.5MPa |
0.5MPa |
