Home Generator Products 10-1000kw Best Price CHP Cogeneration Biomass Gasifier Type Biomass Generator

10-1000kw Best Price CHP Cogeneration Biomass Gasifier Type Biomass Generator

10-1000kw Best Price CHP Cogeneration Biomass Gasifier Type Biomass Generator
Price: US $ 120000set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T

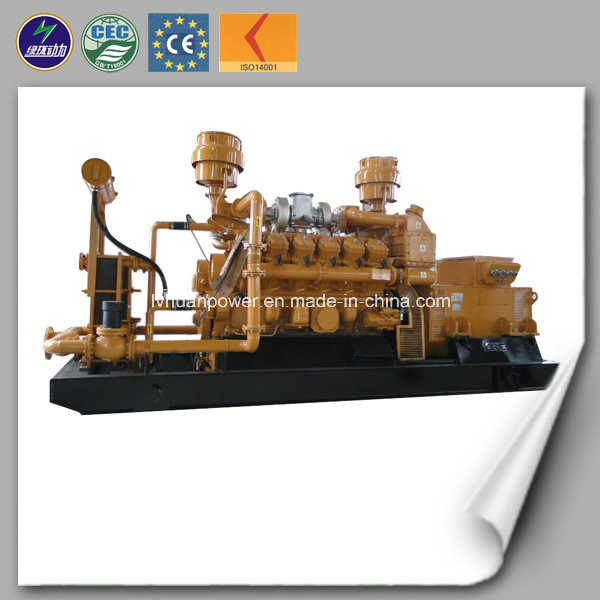

10-1000kw Best Price CHP cogeneration Biomass Gasifier Type Biomass Generator

Product Description:
We are professional manufacturer of gas and diesel generator set for alomost 20 years, our products mainly include natural gas generator, biogas generator, biomass generator, coal gas generator, syngas generator, coal-bed gas generator, coke oven gas generator, diesel generator etc.

Specifications:
1. Power range: 10kw-1000kw, single or parallel running
2. Stable engine, famous alternator, PLC control panel
3. Multi-option of engine, alternator and control system and cooling system

4. Long continuous running hours, 8000 hours per year
5. With CE and ISO
6. Manufacturer, OEM provided

Main spare parts:
1. Control system: America Woodward control system
2. Controller: ComAp, Deepsea, Woodward
3. Ignition system: American ALTRONIC, including:magneto, high-tension coil

4. Starting system: DC 24V electric motor.
5. Mixer: IMPCO
6. Spark plug: STITT

Worksite requirements for generator:
The worksite needs to meet following basic requirements:
 a)  Ambient temperature between -40ºC~40ºC;
 b)  Relative humidity less than 95%(35ºC);
 c)  Site elevation not higher than 2500m;
 d)  For outdoor installation, simple rain shelter is required.

Gas requirements for generator:

1m from genset's pressure regulating valve of inlet

1. Temperature of biomass≤40ºC;
2. Pressure of biomass 5~20kPa, velocity of pressure≤ 1kPa/min;
3. H2S≤200mg/Nm3;
4. NH3≤20mg/Nm3;
5. Coke tar content≤20mg/Nm3;
6. Impurities particle size≤5μm; impurity content≤30mg/Nm3;
7. Moisture Content of biomass ≤40g/Nm3;
8. Biomass calorific value≥4.2MJ/Nm3.

Purification of biomass has a significant impact on machine life and continuous running time!


Service committee:
1. Pre-sale service:
1) We will send our engineer to prospect the site of power station free of charge.
2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.

2. Sale service:
1) Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China,
2) Installation and commission of the genset would be instructed assisted by Lvhuan technicians at site.

3. After-sale service:
1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) We  provide one year guarantee period and lifetime service.

Plentiful spare part supply:
1. We have spart parts department, plentiful spare part supply for all genset model will guarantee genset lifetime running.
2.All parts were from original factories or professional factories,complete in specification, keep good quality.


FAQ:
1. How to choose the right model?
To choose a right model, we need to know required continuous output power, local voltage and frequency and fuel (such as diesel, natural gas, biogas, biomass gas, coal gas, syngas, etc.). For biomass power plant and coal gas power plant, some clients may doesn't have gasification system, then we need information about raw material.

2. What's the warranty?
The warranty is one year. We will offer free service and spare parts during warranty period. Lifetime service will be provided by our trustworthy after-sale team.

3. How to do the maintenance?
Operator training will be provided by our technician. After training, local operator can do the basic maintenance by themselves according to our maintenance manual.

4. Will be operation training offered?
Yes, operator training would be conducted by our technicians during the process of commissioning or factory training course in China.

5. What's about the installation and commissioning?
Installation and commissioning of the genset would be instructed assisted by our technicians on site.

PLS FEEL FREE TO ASK FOR QUESTIONS AND QUOTATION!

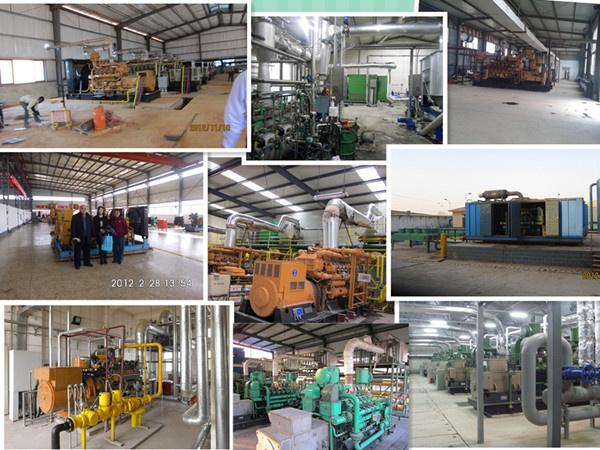

Project pictures:

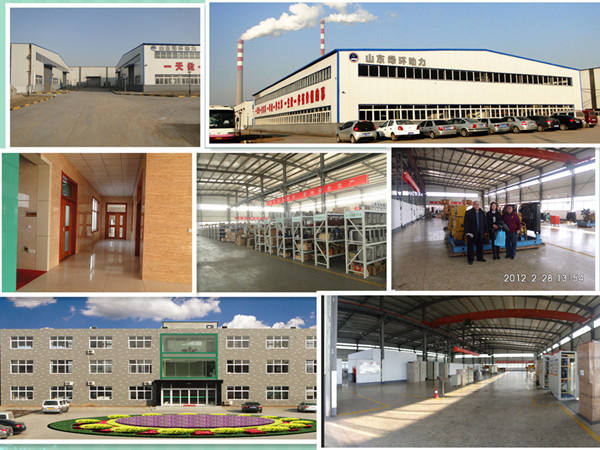

 Factory show:

 Certificate:


 Main technical parameters:

Manufacturer
Shandong Lvhuan Power Equipment Co., Ltd
Genset model
LHBMG600
Engine model
G12V190ZLT
Alternator model
1FC6 454-6LA42-Z
Field control panel
PFT-600
Prime powerkW600
Rated currentA1092
Rated voltageV400/230
Rated power factor cosφ0.8 (lagging)
FrequencyHZ50
Fuel gas consumptionMJ/(kW@h)11
Lubricant consumptiong/(kW@h)≤1.0
Start-up method
DC 24V Electric motor
Start-up control
Manual/Automatic
Wiring method
3 phase 4 line
Stable speed droop%≤5
Cooling method
Closed loop, with fan radiator
Exhaust back pressure max.
6 kPa
Noise level
106 db @ 1 meter away from the genset
Genset vibration
≤7.2mm/s
Coupling between engine and alternator
Elastic coupling
Dimension (L×B×H)mm6200x2100x2800mm
Weightkg12500

Prod Model: LHBMG600
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Biomass Generator
Alternator: Siemens: Brushless, Self-Excited, with AVR, Insula
Controller: Comap, Deepsea
Ignition System: Altronic
Lube Oil: Total Gas Engine Oil 15W-40
Intake Mode: Turbocharger
Cooling Mode: Closed or Open Type Water Cooling
Lubrication Mode: Pressure and Splash
Color: Yellow or Custom Colors
Gas Source: Biomass
Power: >200kw
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.

Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.

We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.

Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
