Product Description

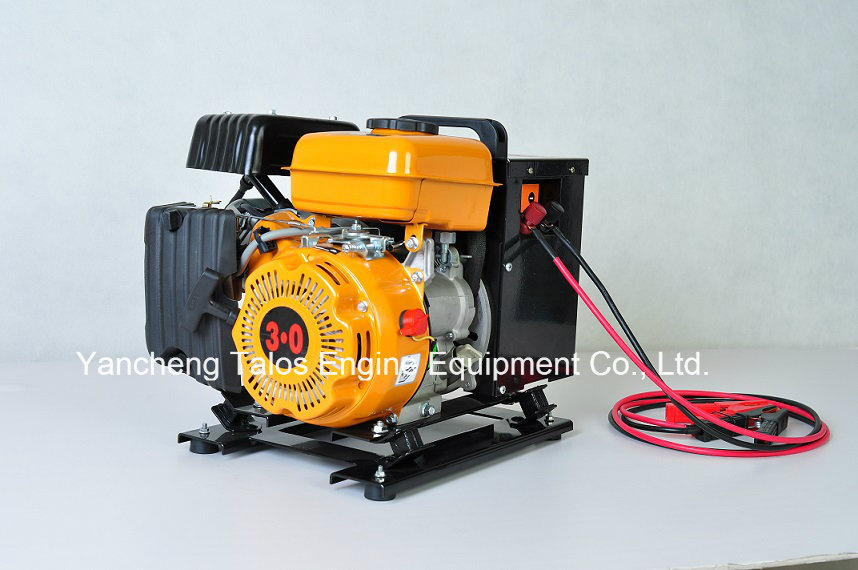

1 kW DC gasoline generator, which is used for charging battery fixed in boat, vehicle and etc. The generator supply 12 / 24V for your use.
Application
1. Farmers can supply enough charge in as little as 5 minutes to start machinery.
2 .Campers can run car fridges for 24 hours and charge their batteries in as little as 1 hour.
3. 24 Volt lighting or other appliances can be powered in emergency situations.
4.Ideal fo r the marine industry, backup for solar powered sites, emergency services, electromotion earthmoving contractors, mobile mechanics, or anyone working in the outback.
Feature
1. Portable
2. Low noise
3. Double votlage: 12 /24V.
DC-Generator | MODEL | GGDC1100 |
Type | Permanent magnet, brushless, bearing-less |
Voltage Regulate | Automatism electronic regulate |
Rated DCOutput | 900 W |
Max DC Output | 1000 W |
Voltage Output Regulation | ±1.0 V(DC) |
Ripple Quotiety | 150mV (when connecting on the battery) |
Rated DC Voltage | 12/24V (DC) |
Rated DC Current | 60/35A--------35/20A |
Charge Output DC Voltage | 14.5/28.8V---28.8/55.6V |
Gasoline Engine | Model | TG156 |
Type | OHV Forced Air-cooled,4-Stroke |
Bore × Stroke | 56 × 38 mm |
Air Cleaner | Semi-dry double silent type |
Cooling System | Air-cooled |
Displacement | 85.7ml |
Compression Ratio | 7.0:1 |
Max Torque | 4.0 N. m @ 3200 rpm |
Ignition system | Non-contact transistorized ignition(T.C.I) |
Spark Plug Gap | 0.7mm |
Lubricating Oil | SF or Higher Grade |
Lubricating Oil Capacity | 0.4 L |
Lubrication System | Pressure Splash |
Fuel Consumption | 438 g/HP-hour |
Power Output | 3.0/3600(HP/ rpm) |
DC-Generator-Set | Fuel | Unleaded gasoline |
Starting System | Recoil starter |
Noise Level | 60 dB(A) @ 7m |
Oil Alarm | With |
Fuel Capacity | 1.6 L |
Dimension (L×W×H) | 390 x 320 x 320 mm |
Gross/ Net weight | 19 / 17.5 kg |
Unit(20/40FT) | 540 / 1110 pc |
