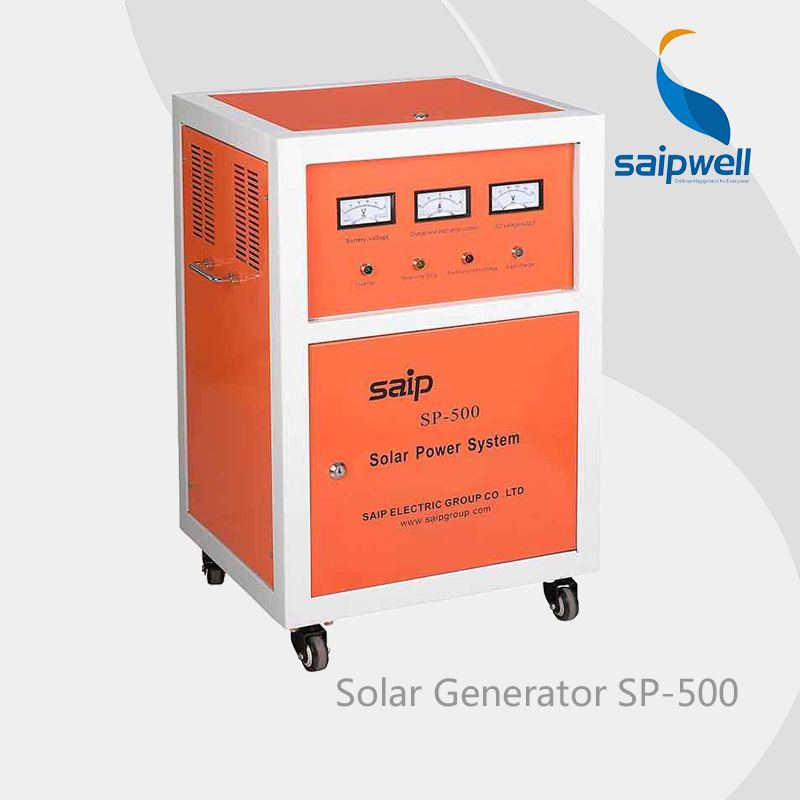

1.82A (220V) / 3.64A (110V) Newly Design Solar Generator (SP-500L)
Specifications
1. Environmental protection and energy saving
2. OEM service
3. CE & RoSH certificate
4.2 years warranty
Simple structure, easy maintenance, Output for pure sine wave, High performance, especially used at home, Charge fuction: Solar and city power, In comparison to a poor environment, with fast charge function.
Charge function: Solar and city power;
High performance, especially used at home;
Protection is wide, with over-voltage, under-voltage, overload, short-circuit and so on;
Electronic insurance tube is replaced of fuse, surge and over-current protection;
Micro-computer chip control, PWM regulate, automatic temperature compensation;
Output for pure sine wave
Simple structure, easy maintenance.
About us
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments. Had office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
Saip has Five specialized branches, over 300 specialized cooperative partners. Saip, an ISO9001 certificated enterprise, owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams technicians and skilled workers.
----To Creat Product That Deliver HappineseTo Everyone
Contact Us
Saipwell Electric Group Company Limited
Add: NO. 512, Wenchuan Road, Shanghai, 201906 China
Tel: 0086-021-56026033-8052
Mobile: +86 15026900836
http://www.saipgroup.com/
We're Professonal, as always~
|
Tecnical Data |
|
|
|
|
|
Model |
SP-500L |
|
Capacity |
500VA |
|
System voltage |
24VDC |
|
Output power |
700WH |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
1.82A(220V) / 3.64A(110V) |
|
Precision OF OV |
±3% |
|
Precision OF OC |
±0.1% |
|
False Output Wave of AC |
<3% |
|
Overload Ability |
120%,30 seconds |
|
Invert Efficiency |
>85% |
|
Solar panel |
Pmax |
200W |
|
Vmp |
35V |
|
Lmp |
5.7A |
|
Battery |
Capacity |
24V100AH |
|
Package data: |
|
Part |
Size (L*W*H mm) |
Weight(kg) |
20' (pcs) |
40' (pcs) |
|
Power box |
580*500*860 |
56 |
50 |
125 |
|
Solar panel |
1200*850*85 |
23 |
|
Solar panel bracket |
1660*85*75 |
14 |
|
Battery |
366*420*275 |
58 |
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
