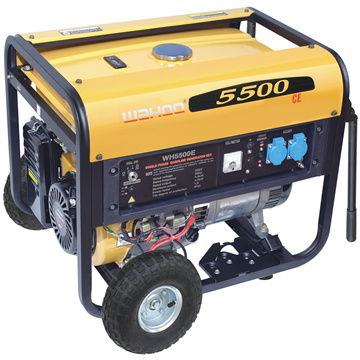

4000watts CE Approval Wahoo Gasoline Generator (WH5500/E)
Brand:Wahoo
Warranty:16 months
MOQ:100 sets
Delivery time:20-25days after received deposit
Port of Shipment: NingBo, China
Terms of Payment:1. 30% T.T deposit in advance,the balance payment before delivery. 2. L/C At Sight
CE Approved 4kw gasoline Generators of Top Quality WH5500
Feature:
1.Start easily with a lightly pull
2.16months warranty
3.stable voltage and frequency
4.low fuel consumption
5.We can supply OEM brand
6.We will according to customer's demand
Quality Approvals: CE
Main Export Markets: Eastern Europe, North America, Mid East/Africa,
Central/South America, Asia, Western Europe, Australasia.
Payment Terms: T/T or L/C
FOB Port: Ningbo or Shanghai
Lead Time: 20 days
CE approval gasoline Generator Specification WH5500 Heavy Duty Design |
Rated frequency (Hz): | 50 |
Rated voltage (V): | 230V |
Rated output power (kW): | 4.0 |
Max output power (kW): | 4.5 |
Rated rotation speed (rpm): | 3000 |
DC output: | 12V 8A |
Power factor cos: | 1 |
Phase number : | Single phase |
Noise level dB (A)/7m (zero load-full load): | 70-74 |
Fule tank[L]: | 23 |
Overall dimensions [mm] ( L x W x H ): | 645*540*580 |
N.W/G.W[Kg]: | 85/86 |
Engine model: | WG340 |
Engine type: | 4-stroke |
Displacement [cc]: | 337 |
Compression ratio: | 8.5:1 |
Rated power [(HP/rpm]: | 11.0/3600 |
Rated rotation speed (rpm): | 3600 |
T.C.I: | with |
Spark plug: | F6RTC |
Starting system: | Recoil starter or electric starter |
Rotation direction (view from flywheel): | Clockwise |
Fuel type: | Automotive Unleaded Gasoline |
Lube oil brand: | SAE10W30 (above CC grade) |
Low oil alarm system : | With |

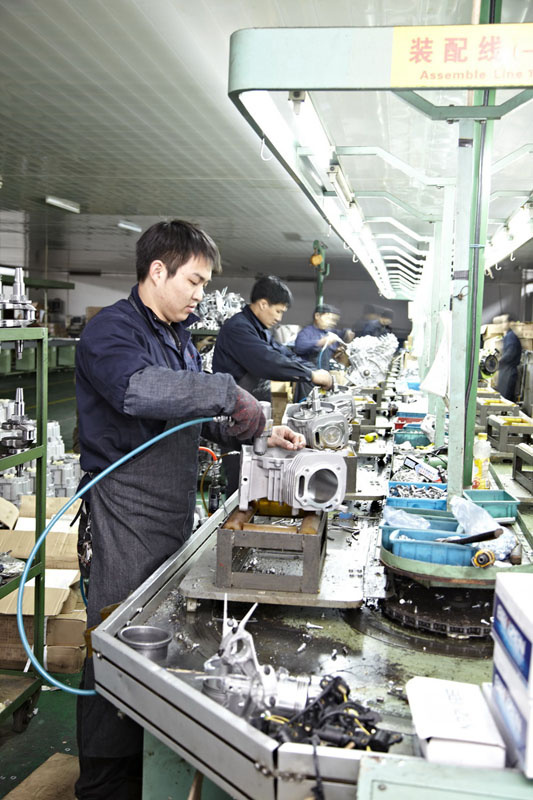

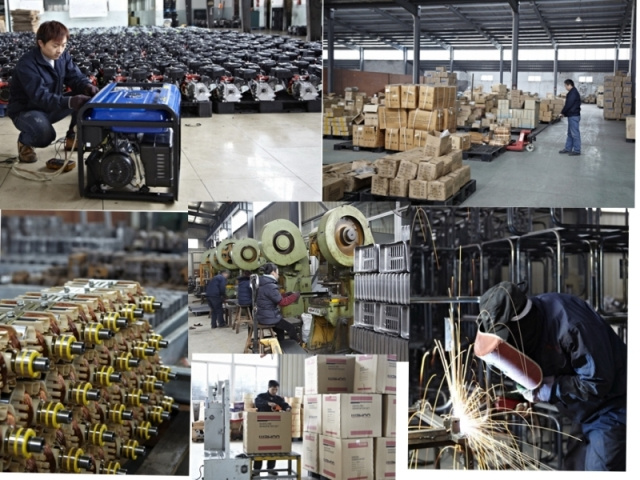

Production Machinery:
|
---|
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | |
---|
Punching Machine | J23, JB04-1 | 7 | 5.0 |
|
Cutting Machine | 215 | 3 | 5.0 |
|
Tube Bending Machine | DB38 | 3 | 5.0 |
|
Plate Shearing Machine | QC12Y-4*2500 | 1 | 5.0 |
|
Drilling Machine | Z512,Z4116 | 8 | 5.0 |
|
Bench Milling Machine | Xj51 | 1 | 5.0 |
|
Welding Machine | TCW-32D, NBC-350, DN160 | 10 | 4.0 |
|
Winding Machine | PR-2 | 2 | 4.0 |
|
Cleaning Machine | ZQX-2000 | 1 | 3.0 |
|
Marking Machine | HUAPU | 2 | 4.0 |
|
Hydraulic Machine | MAOYI, 5T | 8 | 4.0 |
|
Testing Machinery:
|
---|
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | |
---|
Withstand Voltage Tester | CS2670A | 4 | 3.0 |
|
Low DC Resistance Tester | TH2512, WB2511A | 2 | 3.0 |
|
Performance Test Bench | No Information | 4 | 5.0 |
|
Spring Tension Tester | TLS-S | 1 | 3.0 |
|
Rockwell Apparatus | HR-150A | 2 | 3.0 |
|
Gear Runout Tester | 1-6mm | 1 | 3.0 |
|
Torque Tester | NJ-100 | 1 | 3.0 |
|
Test Platform | No Information | 1 | 3.0 |
|
Inverter Welder Tester | SJ | 1 | 4.0 |
|
Turbine Dynamometer | No Information | 2 | 4.0 |
|
