Medical Grade Oxyge Concentrator
Features:1. Adopts american PSA technology, use Physical method to separate pure oxygen from air
2. America imported molecule sieve, long life and more efficiency
3. Brand-new design, classic appearance
4. Advanced oil-free compressor, save 10% power energy
5. 24 hours continuous working available, 10 000 hours working time warranty
6. Big LCD Screen easy to operate
7. Optional nebulizer and oxygen purity alarm function
8. Power off alarm, abnormal voltage alarm
9. Time keeping and time counting
10. Optional nebuylizer and oxygen purity alarm function
11. 8 years experience and technology make sure the stable and reloable quality
12. CE, ISO13485 approved by TUV SUD

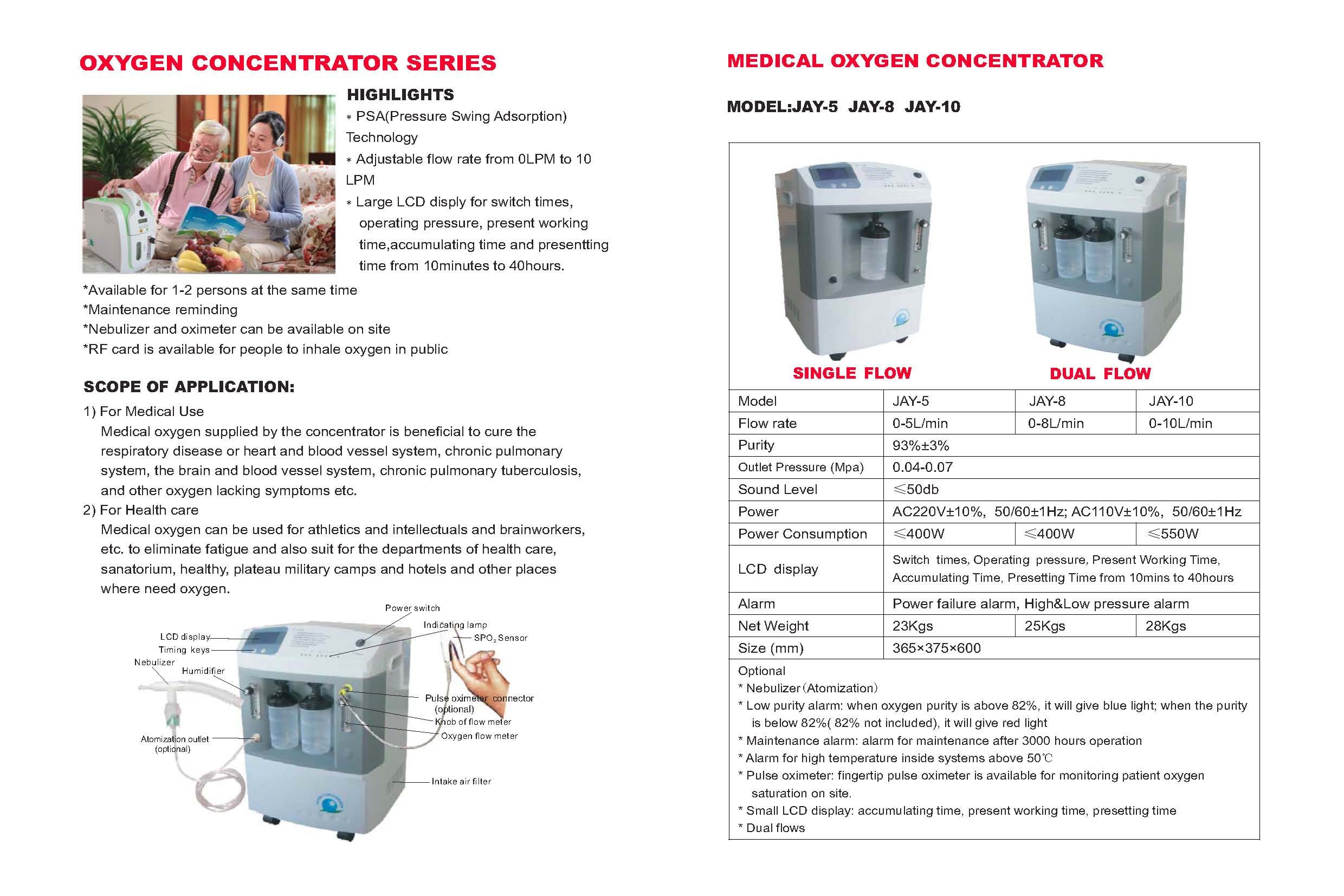

Specifications:Model | JAY-10 |
Flow rate | 1-9L/min, 93%±3%, 10L/min, 90%±2% |
Outlet Pressure (Mpa) | 0.04-0.07 |
Sound Level | ≤50db |
Power | AC230V, 50Hz(AC220V/110V±10%, 50/60±1Hz are available) |
Power Consumption | ≤550W |
LCD display | Swith times, Operating pressure, Present Working Time, Accumulating Time, presetting Time from 10mins to 40hours |
Alarm | Power failure alarm, High&Low pressure alarm |
Net Weight | 26Kgs |
Size (mm) | 365×375×600mm |
Optional: *Nebulizer(Atomization) *Low purity alarm: when oxygen purity is above 82%, it will give green light; when the purity is blow 82%(82% not included), it will give red light. *Maintenance alarm: alarm for maintenance after 3000 hours operation *Alarm for high temperature inside systems above 50ºC *Pulse oximeter: fingertip pulse oximeter is available for monitoring patient oxygen saturation on site. *Small LCD display: accumulating time; present working time presetting time. *Dual flows. |
